Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Sealed Type:
Sealed
Voltage :
96V 192V 240V 360V 384V
Ampere:
100ah, 200ah, 300ah,,,etc
Maintenance Type:
Free Maintenance
Cycle Life:
More than 6000times
Material:
3.2v 50ah battery cell
Certification:
CE, UN38.3, UL
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
12 years
Specifications
| MODEL | 5.12KWH | 7.68KWH | 10.24KWH | 12.8KWH | 15.36KWH | 17.92KWH | 20.48KWH | 23.04KWH | 25.6KWH | ||
| Battery Module | (2.56kWh, 51.2V, 34kg，600/355/145) | ||||||||||
| Number of Modules | 2PCS | 3PCS | 4PCS | 5PCS |
6PCS | 7PCS | 8PCS | 9PCS | 10PCS | ||
| Nominal Voltage | 102.4V | 153.6V | 204.8V | 256V | 307.2V | 358.4V | 409.6V | 460.8V | 512V | ||
| Operation Voltage Range(V) | 94.4~113.6 | 141.0~170.4 | 188.8~227.2 | 236~284 | 283.2~340.8 | 330.4~397.6 | 377.6~454.4 | 424.8~511.2 | 472~568 | ||
| Weight(KGS) | 83 | 117 | 151 | 185 | 219 | 253 | 287 | 321 | 355 | ||
| Battery Type | Lithium iron phosphate(LFP) | ||||||||||
| Standard Charge/Discharge Current | 25A@0.5C | ||||||||||
| Max Charge/Discharge Current | 50A@1C | ||||||||||
| IP Protection | IP65 | ||||||||||
| Installation | Wall Mounted or Floor Mounted | ||||||||||
| Operation Temperature | 0℃~45℃ | ||||||||||
| Features | |||||||||||
| DOD | 80%（can be 100%) | ||||||||||
| Cycle Life | 6000Cycles | ||||||||||
| Warranty | 10Years | ||||||||||
| Communication | CAN/RS485 | ||||||||||
| Certification | CE IEC UL CEC UN38.3 | ||||||||||
Details of Lithium Battery
Projects of Lithium Battery
All lithium batteries have BMS inside.
Our Lithium Battery Modular can connect in parallel to reach 48v 20kwh, 50kwh, 100kwh,,etc.

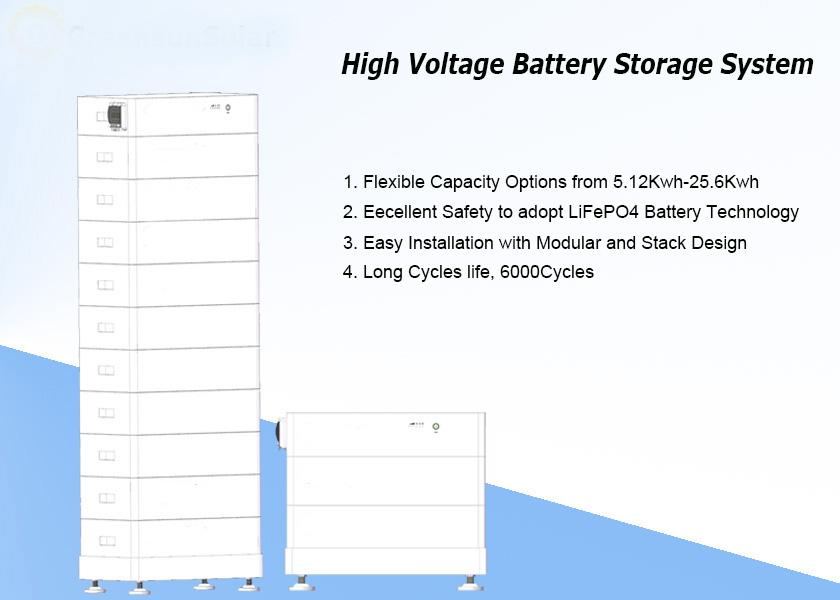

Also offer high voltage lithium battery cabinet, such as 96v, 120v, 144v, 192v, 240v, 360v,,,etc.

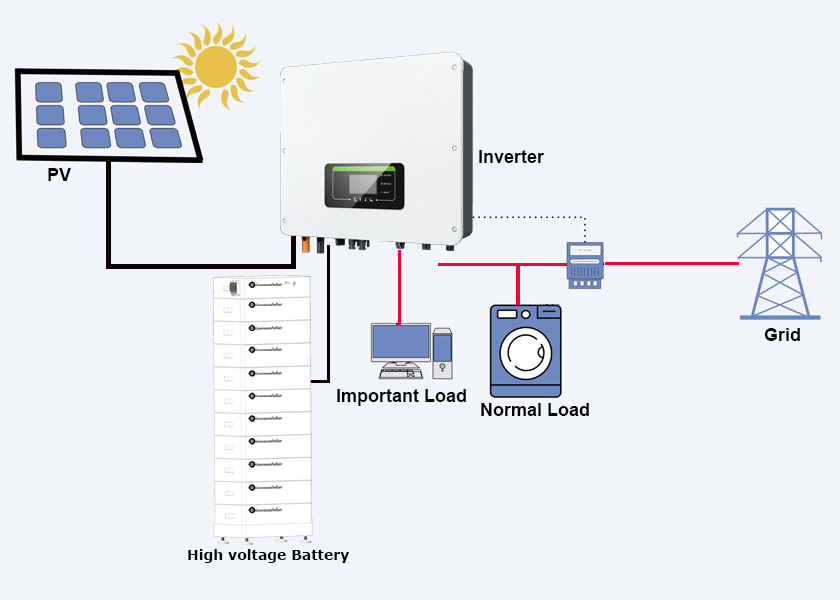

We offer one stop solution with solar panel, storage inverter,lithium battery and battery cabinet.
Fast delivery, free design, 100% new battery cells.
Accept OEM and ODM service.
