Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Sealed Type:
Sealed
Voltage :
48
Ampere:
50ah, 100ah, 150ah,200ah
Maintenance Type:
Free Maintenance
Cycle Life:
More than 6000times
Material:
3.2v 50ah battery cell
Certification:
CE, UN38.3, UL
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
10 years

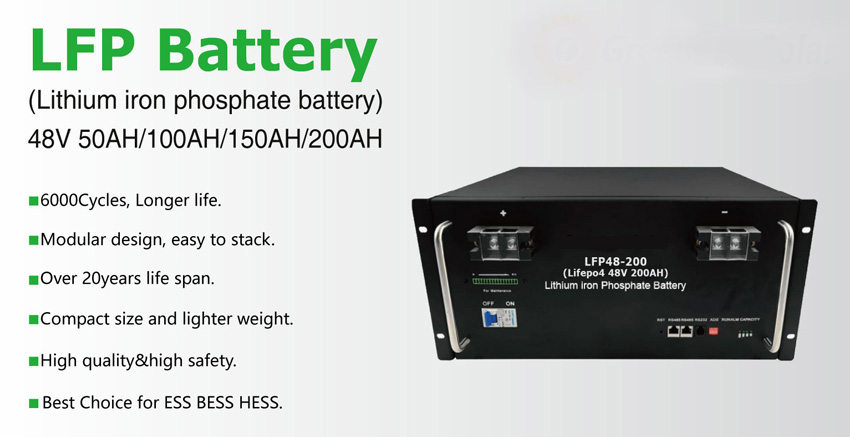

Lithium Ion Battery 48V 51.2V Lifepo4 Battery Pack 100AH 150AH 200AH 200AH 400AH 500AH 600AH
Lithium Ion Battery Pack Datasheet
| Lithiu Battery Model | 48V 50AH | 48V 100AH | 48V 150AH | 48V 200AH |
| Nominal Voltage | 48V | 48V | 48V | 48V |
| Nominal Capacity | 2400WH | 4800WH | 7200WH | 9600WH |
| Usable Capacity (80% DOD) | 1920WH | 3840WH | 5760WH | 7680WH |
| Dimension (mm) | 482*400*180 | 440*500*190 | 580*500*190 | 690*500*190mm |
| Weight (Kg) | 27Kg | 45Kg | 60Kg | 75Kg |
| Discharge Voltage | 37.5 ~ 54.7V | |||
| Charge Voltage | 48 ~ 54.7 V | |||
| Charg/ Discharge Current | Max Current 100A | |||
| Communication | CAN/ RS-485 | |||
| Operating Temperature Range | - 10℃ ~ 50℃ | |||
| Humidity | 15% ~ 85% | |||
| Product Warranty | 10 Years | |||
| Design Life Time | 20+ Years | |||
| Cycle Time | 6000+ Cycles | |||
| Certificates | CE , UN38.3, UL | |||
| Compatible Inverter | SMA, GROWATT, DEYE, GOODWE, SOLA X, SOFAR,,,etc | |||

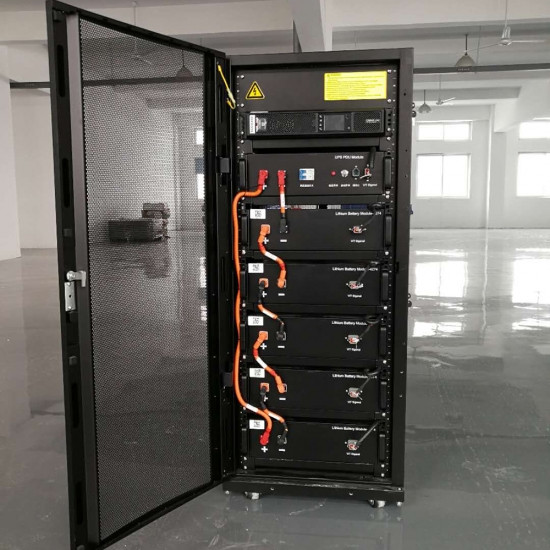

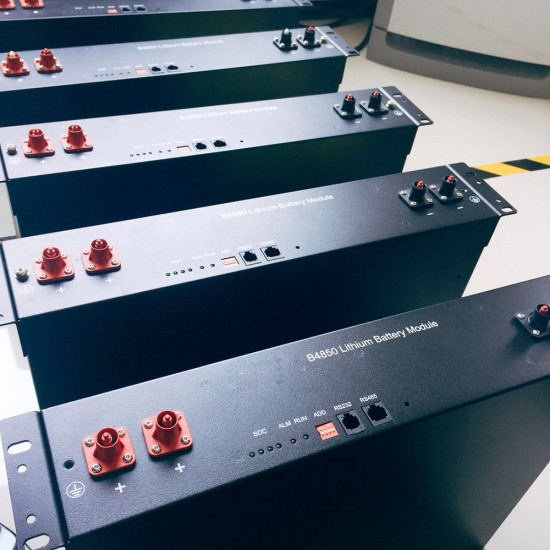

Details of Lithium Battery

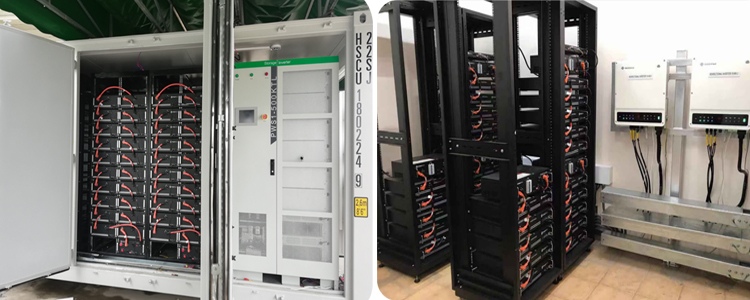

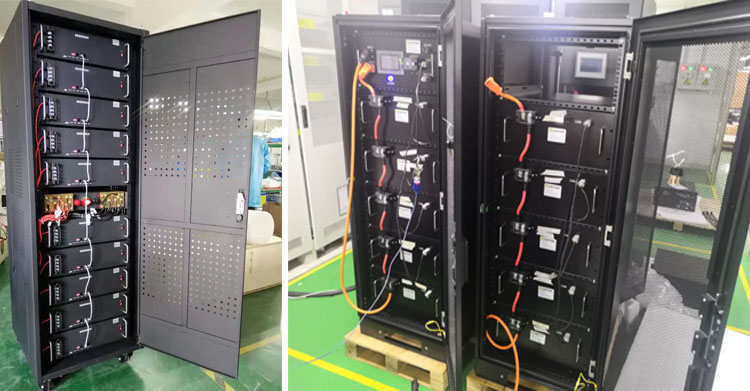

Projects of Lithium Battery
All lithium batteries have BMS inside.
Our Lithium Battery Modular can connect in parallel to reach 48v 20kwh, 50kwh, 100kwh,,etc.
We offer one stop solution with solar panel, storage inverter,lithium battery and battery cabinet.
Fast delivery, free design, 100% new battery cells.
Accept OEM and ODM service.
