Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Type:
Lithium Ion Battery
Sealed Type:
Sealed
Voltage :
48
Ampere:
200AH-2000AH
Maintenance Type:
Free Maintenance
Cycle Life:
More than 6000times
Material:
3.2v 50ah battery cell
Certification:
CE, UN38.3, UL
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
12 years

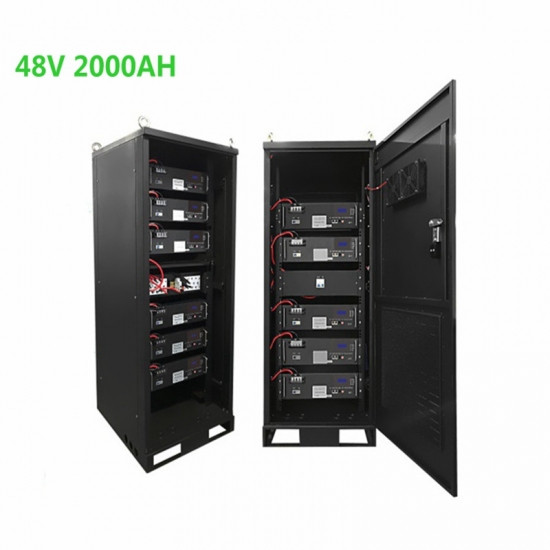

48V 1200AH 1400AH 1600AH 1800AH 2000AH Lithium Ion Battery Pack with Cabinet
Lithium Ion Battery Pack Datasheet
| Lithiu Battery Model | 48V 1200AH | 48V 1600AH | 48V 1800AH | 48V 2000AH |
| Nominal Voltage | 48V | 48V | 48V | 48V |
| Battery Module | 6Pcs | 8Pcs | 9Pcs | 10Pcs |
| Nominal Capacity | 57600WH | 76800WH | 86400WH | 96000WH |
| Usable Capacity (80% DOD) | 46080WH | 61440WH | 69120WH | 76800WH |
| Weight (Kg) | 500Kg | 650Kg | 720Kg | 850Kg |
| Discharge Voltage | 37.5 ~ 54.7V | |||
| Charge Voltage | 48 ~ 54.7 V | |||
| Charg/ Discharge Current | Customizable | |||
| Communication | CAN/ RS-485 | |||
| Operating Temperature Range | - 10℃ ~ 50℃ | |||
| Humidity | 15% ~ 85% | |||
| Product Warranty | 10 Years | |||
| Design Life Time | 20+ Years | |||
| Cycle Time | 6000+ Cycles | |||
| Certificates | CE , UN38.3, UL | |||
| Compatible Inverter | SMA, GROWATT, DEYE, GOODWE, SOLA X, SOFAR,,,etc | |||

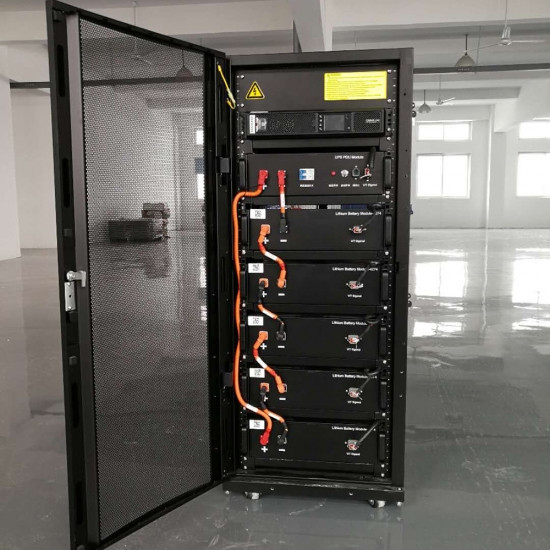

Details of Lithium Battery
Projects of Lithium Battery
All lithium batteries have BMS inside.
Our Lithium Battery Modular can connect in parallel to reach 48v 20kwh, 50kwh, 100kwh,,etc.Our lithium battery pack is a modular design, which can be continuously added according to the actual needs of customers.
For example, the design is 48V 1000AH 1200AH 1400AH 1600AH 2000AH and so on.
At the same time, we design a suitable battery cabinet and BMS system according to the number of lithium batteries.
Our lithium battery pack can communicate with all inverter brands in China, as well as with foreign inverter brands, such as Sol Ark,,,,etc.
Fast delivery, free design, 100% new battery cells.
Accept OEM and ODM service.
Complete solar power system solution supplier.
