Brand:
SUNTREE OR OEM SERVICE
Item NO.:
24V Lithium Battery
Product Origin:
China
Shipping Port:
Shenzhen/Ningbo/Shanghai
Solar Cell:
LiFePO4
Power Ranger:
5kwh 10kwh
Type:
Lithium Ion Battery
Voltage :
24V, 25.6V
Ampere:
200AH 400AH 600AH
Maintenance Type:
Free Maintenance
Cycle Life:
More than 20years
Material:
LifePO4
Certification:
CE MSDS TUV UL
Lead Time:
10-15days
Payment:
T/T/West Union/Credit Card/Paypal
Warranty:
12 years

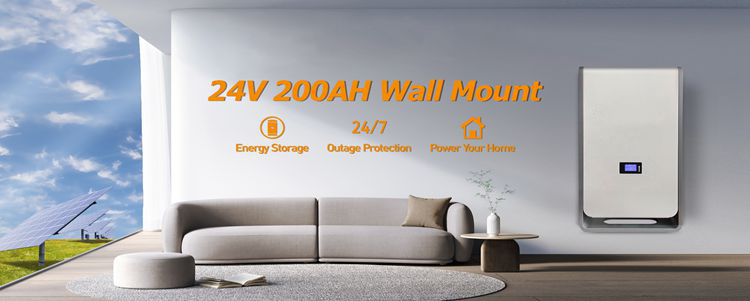

24V 25.6V Wall Mounted 200AH 400AH 600AH Lithium Ion Battery 5KWH 10KWH 15KWH 20KWH Powerwall for Home Storage System
Advantages of SUNTREE Powerwall Lithium Battery
1. 12Years warranty
2. 6000Cycles long life-time
3. Modular stack up to 14 Powerwalls in parallel
4. RS485&CAN Communicaion
5. Built-in Smart BMS
6. Compact size and Safe Material
How SUNTREE Powerwall Works?
1. It stores energy from solar panels or grid
2. It prevent your house from power outage
3. Powerwall provides energy for you when you need
4. Powerwall can be charged by solar or city grid
Specifications of SUNTREE Powerwall
| Model | LFP24-200 | LFP24-400 | LFP25.6-600 |
| Norminal Voltage | 25.6V | 25.6V | 25.6V |
| Nomrinal Capacity | 200AH | 400AH | 600AH |
| Norminal Energy | 5KWH | 10KWH | 15KWH |
| Charge Current | 50A | 50A | 50A |
| Max Discharge Current | 100A | 100A | 100A |
| Design Life | 20Years | 20years | 20years |
| Weight | 55KGS | 110KGS | 160KGS |
|
BMS | built-in BMS | built-in BMS | built-in BMS |
| Communication |
CAN/RS-485/RS-232 |
CAN/RS-485/RS-232 |
CAN/RS-485/RS-232 |

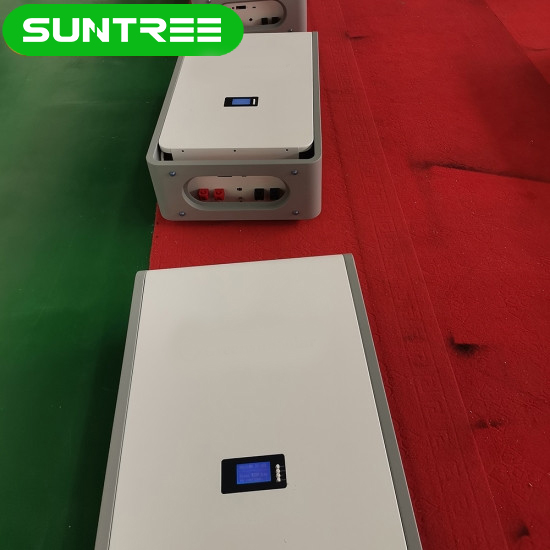

Projects of Home Powerwall Battery
This 48V low voltage lithium battery is a rack mountable battery storage system for residential and general commercial use.
This lithium iron phosphate battery adopts a modular design, and the quantity can be added or reduced according to actual usage needs.
It can provide safe and reliable energy storage for daily use and backup of solar energy storage system.
Suitable for outdoor use, the system is simple to install and is compatible with most energy storage inverters from industry leading manufacturers including Deye, Sol-Ark, SMA, Schneider, Growatt, Atess, Outback, Megarevo and many more.
