Brand:
SUNTREE OR OEM SERVICE
Item NO.:
SUNTREE HV BATTE
Product Origin:
CHINA
Color:
WHITE
Shipping Port:
shenzhen, shanghai
Type:
Rack Mount Lithium battery
Max Power :
1000KWH
Maintenance Type:
Free
Cycle Life:
25Years
Certification:
IEC, TUV, UL,CE
Lead Time:
7 Days
Warranty:
15 Years
100KWH 120KWH 150KWH 200KWH LiFePO4 Storage Lithium Ion Batteries for Solar Power Systems Solution

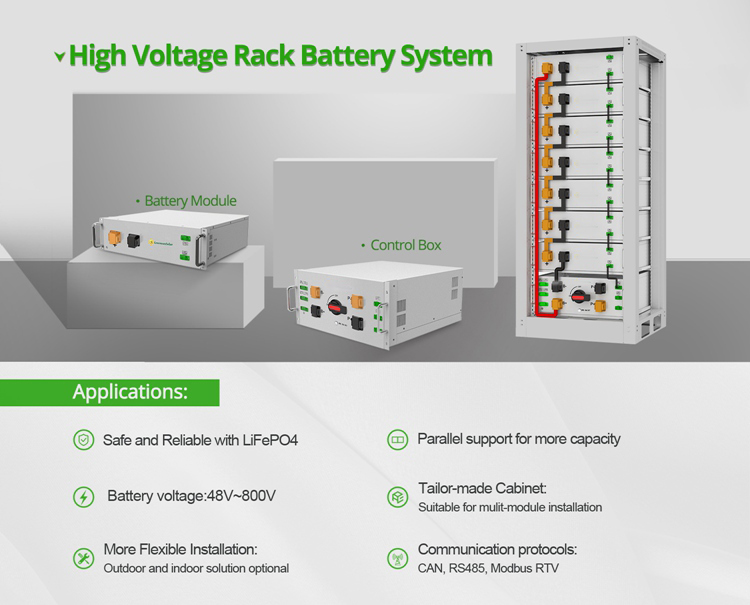

High Voltage Stacked LiFePO4 Battery
*100V-1000V wide voltage
*30KWH-500KWH wide Capacity
*Easy installation with modular and stacked design
*Remote firmware upgrade
*IEC/ CE /CEC/ UN38.3/ UL/ MSDS Certificates
*Compatible with all brands Hybrid Inverters
SUNTREE Lithium Ion Battery Specification
| MODEL | 115KWH | 145KWHH | 172KWH |
| Battery Module | 51.2V 280AH LiFePO4 Battery | ||
| Numbers of Modules | 8 | 10 | 12 |
| Energy Capacity | 114.68KWH | 143.36KWH | 172.03KWH |
| Norminal Voltage | 409.6V | 512V | 614.4V |
| Voltage Range | 358.4 - 460.8V | 448 - 576V | 537.6 - 691.2V |
| Max Charge Current |
100A | ||
| Max Discharge Current |
100A | ||
| General | |||
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) | ||
| Cycle Life | ＞ 6000 Cycles | ||
| IP Protection | IP65 | ||
| Installation | Rack Mount Support | ||
| Operation Temperature | -10~50°C* 3 | ||
| Warranty | 12Years | ||
| Communication Port | CAN/RS-485/RS-232 | ||
| BMS Monitoring Parameters | SOC, System voltage, current, cell voltage,cell temperature, PCBA temperature measurement | ||

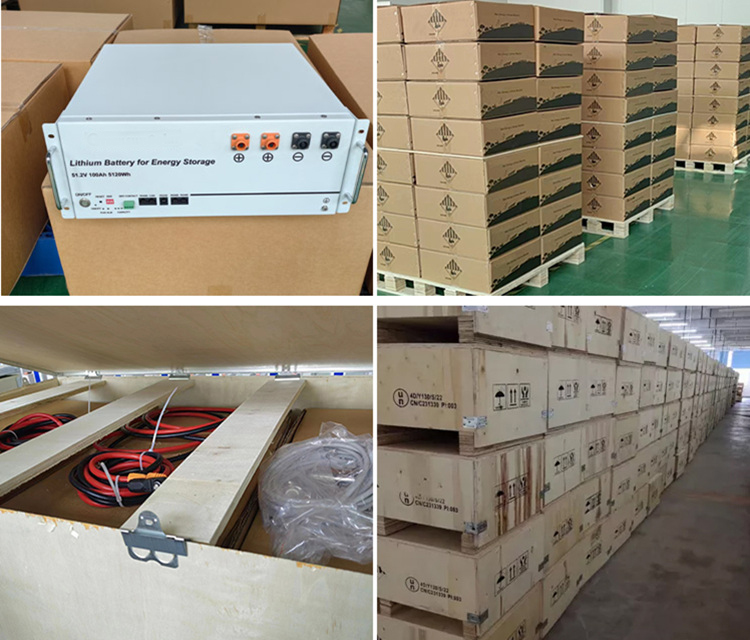

SUNTREE Battery Production & Package

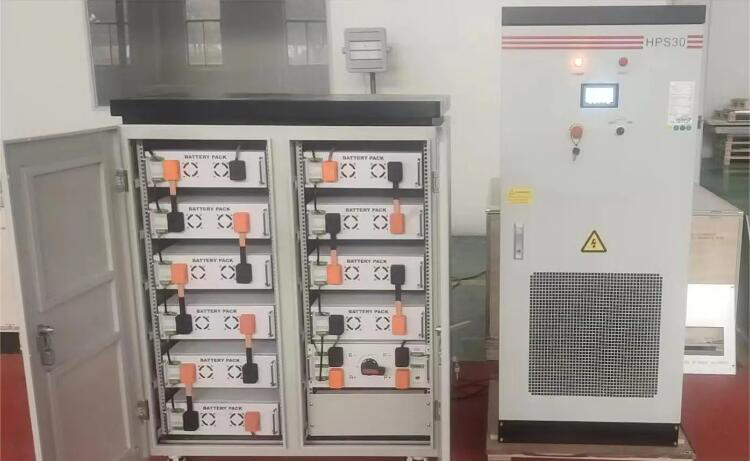

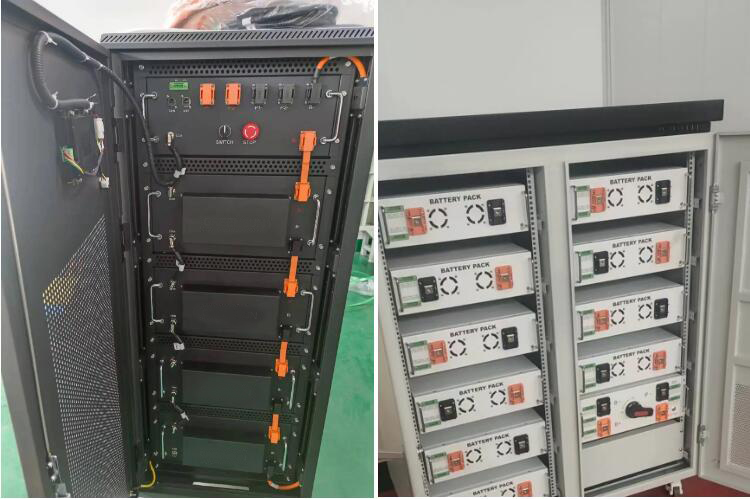

SUNTREE Lithium Ion Battery Projects for Reference
All lithium batteries have BMS inside.
Our High Voltage Rack Stack Lithium
Battery Modular can connect in parallel to reach 100KWH to 1MWH, ,,etc. Compared with ordinary sealed lead-acid batteries, our LiFePO4
batteries have more advantages.
1. With the same capacity, the weight is lighter
2. Longer life, generally more than 20 years
3. Faster charging speed and lower self-discharge rate.
4. Built-in BMS, higher security.
Our lithium battery cells come from first-line manufacturers, including CATL, BYD, EVE and other brands.
All batteries are of A+ quality to ensure that the product quality can meet the requirements of customers.
At the same time, our lithium batteries comply with CE, IEC, ISO, UL,
MSDS, UN38.3 and other product certifications to meet the local sales
and use requirements of customers in multiple markets.
At present, our lithium battery products have been exported to more than
100 countries and regions, and we provide quality assurance and
after-sales service for all products.
According to the product status feedback from customers, remote upgrade
control or free replacement of BMS motherboard accessories.
