Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
72
Solar Cell:
5bb mono 156*156mm
Power Ranger:
385W-405W
Size:
1960*990mm
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

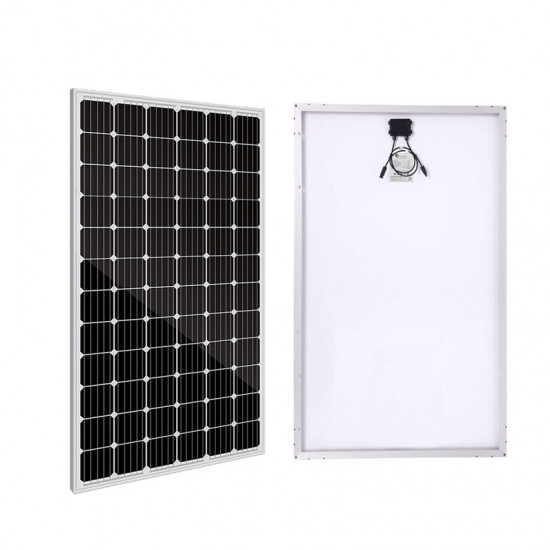

PERC Monocrystalline Solar Module High Efficiency Panel 380w 385w 390w 400w 405w

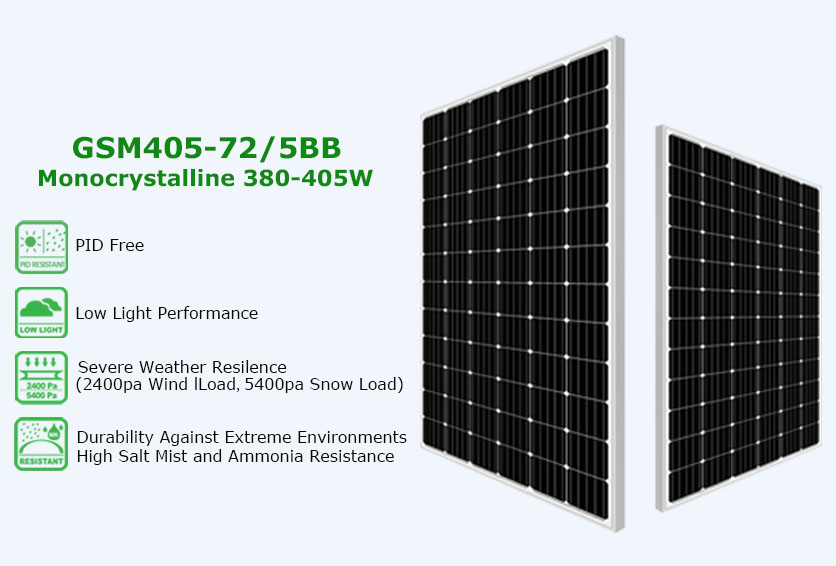

Specification for 5BB PERC pv module 385w 405w
PV Module | GSM385-72 | GSM390-72 | GSM400-72 | GSM405-72 |
| Rated Maximum Power(Pmax) [W] | 385 | 390 | 400 | 405 |
| Open Circuit Voltage(Voc) [V] | 49.1 | 49.3 | 49.7 | 49.9 |
| Maximum Power Voltage(Vmp) [V] | 40.8 | 41.1 | 41.7 | 42.0 |
| Short Circuit Current(Isc) [A] | 9.92 | 10.12 | 10.35 | 10.72 |
| Maximum Power Current(Imp) [A] | 9.44 | 9.49 | 9.60 | 9.65 |
| Module Efficiency [%] | 21.2 | 21.5 | 22.1 | 22.4 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | |||
| STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | |||
|
Size |
1960*990*40/45mm | |||
|
Weight |
22.5kg(49.6lb) | |||
Package for 5BB solar cells solar pv module 380wp to 405wp
26units to 30units 5BB perc solar pv module 405wp in one wood pallet
10pallets solar panels in a 20ft container
24pallets pv modules in a 40ft HQ container
Customization Package is Feasibility
Projects made by SUNTREE solar
Grid tie solar system connects to grid, self consumption first, excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
