Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
144cells
Solar Cell:
5bb mono 156*156mm
Power Ranger:
390W-410W
Size:
2000mm × 996mm×40mm
Type:
Half-cut cells
Max Power :
410Watt
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

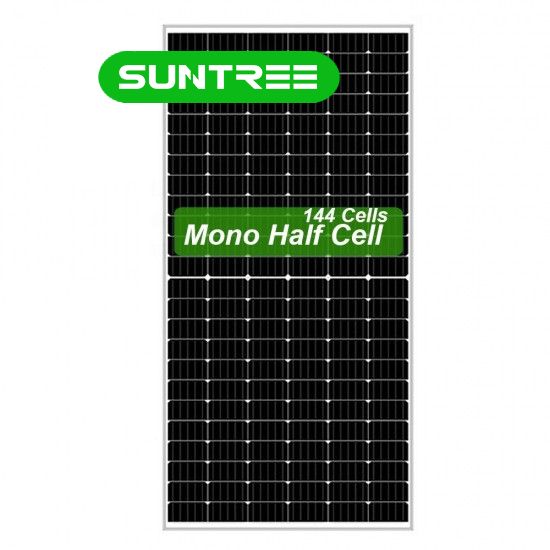

144cells Half Cut Mono Solar Panel 390w 395w 400w 405w 410w PV Modules

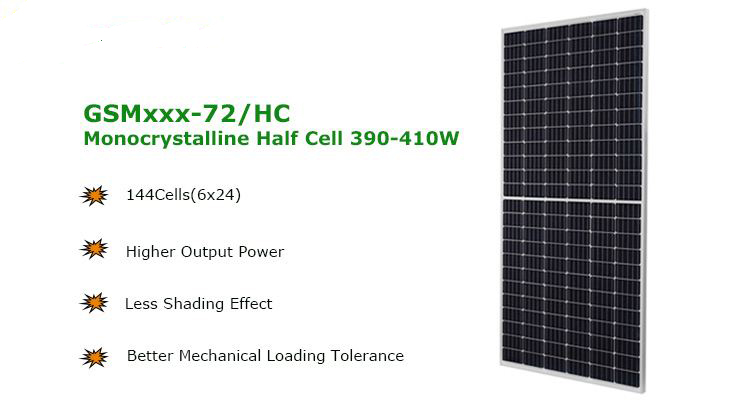

Specification for Half-cut Cells Solar Panel Monocrystalline
PV Module | GSM390-72HC | GSM395-72HC | GSM400-72HC | GSM405-72HC | GSM410-72HC |
| Rated Maximum Power(Pmax) [W] | 390 | 395 | 400 | 405 | 410 |
| Open Circuit Voltage(Voc) [V] | 48.91 | 49.21 | 49.50 | 49.81 | 50.12 |
| Maximum Power Voltage(Vmp) [V] | 40.55 | 40.85 | 41.17 | 41.46 | 41.76 |
| Short Circuit Current(Isc) [A] | 10.16 | 10.21 | 10.26 | 10.32 | 10.37 |
| Maximum Power Current(Imp) [A] | 9.62 | 9.67 | 9.72 | 9.77 | 9.82 |
| Module Efficiency [%] | 19.4 | 19.7 | 19.9 | 20.2 | 20.4 |
|
Dimensions |
2000±2mm × 996±2mm × 40mm | ||||
|
Junction Box |
IP68, 3 diodes | ||||
|
Warranty |
12 years limited product warranty, 25 years limited linear power warranty. | ||||
|
Weight |
22.7Kg | ||||
Package & Transport of 120cells Half-cut Solar Panels
| 120cells Solar Panel |
20`GP |
40`GP |
40`HC |
| Pcs/Pallet |
30 |
30 |
30 |
| Pallets/Container |
14 |
28 |
30 |
| Pcs/Container |
400 |
840 |
900 |
| 144cells Solar Panel |
20`GP |
40`GP |
40`HC |
| Pcs/Pallet |
27 |
27 |
27 |
| Pallets/Container |
10 |
22 |
24 |
| Pcs/Container |
270 |
572 |
696 |
Customization Package is Acceptable
Projects made by SUNTREE solar
Grid tie solar system connects to grid, self consumption first, excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
