Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
72
Solar Cell:

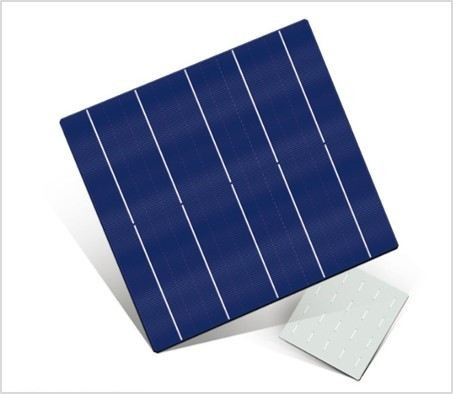

Mono 158.75*158.75mm
Power Ranger:
380W-405W
Size:
1665x1002x35mm
Type:
Monocrystalline
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years
158mm x 158mm Mono Solar Panel 60cells 380watt 390watt 400watt PERC PV Modules
Specification of Full Square Mono 72cells Solar Panel
| PV Module | GSM380-72 | GSM390-72 | GSM400-72 | GSM405-72 |
| Rated Maximum Power(Pmax) [W] | 380 | 390 | 400 | 405 |
| Open Circuit Voltage(Voc) [V] | 48.82 | 49.3 | 49.8 | 50.1 |
| Maximum Power Voltage(Vmp) [V] | 40.58 | 41.1 | 41.7 | 41.9 |
| Short Circuit Current(Isc) [A] | 9.75 | 10.12 | 10.32 | 10.42 |
| Maximum Power Current(Imp) [A] | 9.39 | 9.49 | 9.60 | 9.67 |
| Module Efficiency [%] | 19.16 | 19.67 | 20.17 | 20.42 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | |||
| STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | |||
|
Size |
1665*1002*35mm | |||
|
Weight |
18.5kg | |||

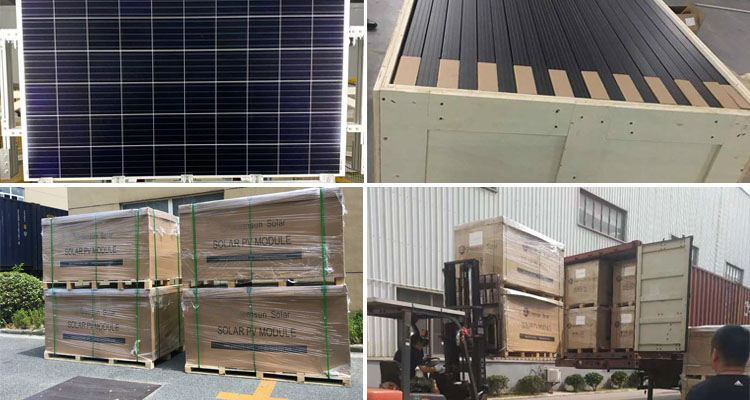

Package for Full Square Solar Cells Mono Solar Panel
27units to 30units photovoltaic panel 60CELLS in one wood pallet
10pallets solar panels in a 20ft container
23pallets pv modules in a 40ft HQ container
Customization Package is Feasibility
Projects made by SUNTREE solar

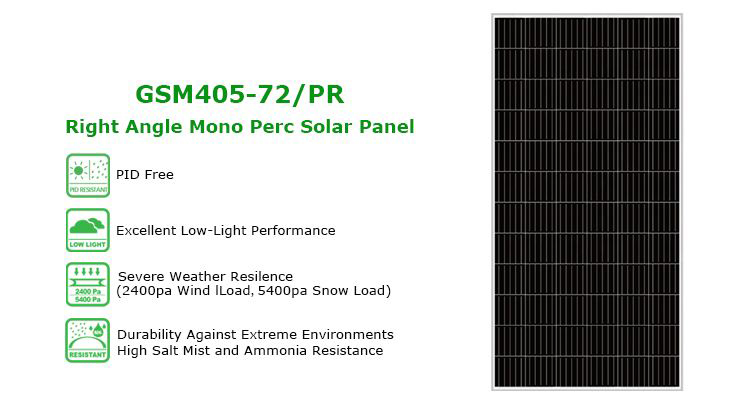

> High module conversion efficiency up to 20.42% by using high efficient solar cells
and advanced manufacturing technology.
> Low degradation and excellent performance under high temperature and low light
conditions.
>Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa
and snow loads up to 5400Pa.
>High reliability against extreme environmental conditions (passing salt mist,
ammonia and hail tests).
>Potential induced degradation (PID) resistance.
>Positive power tolerance of 0 ~ +3 %.
On grid solar system connects to grid, self consumption first, excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Solar power storage system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Stand alone solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
