Item NO.:
GCL Solar Panel
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
120cells
Solar Cell:
mono 5BB half cut 120 cells
Power Ranger:
330W
Size:
1686mm ×1000mm×35mm
Type:
Half-cut cells
Max Power :
330Watt
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

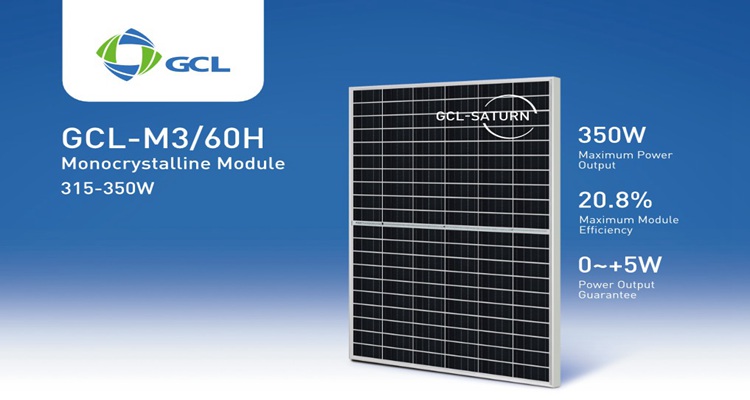

GCL 330W Solar Panel Half Cell 120cells Monocrystalline Solar Module 330Watt CSA UL Tier 1 Brand
Specification for Half-cut Cells Solar Panel Monocrystalline
Product Description ：
PV Module | GCL - M3/60H | ||||
| Rated Maximum Power(Pmax) [W] | 320W | 325W | 330W | 335W | 340W |
| Open Circuit Voltage(Voc) [V] | 39.85 | 40.15 | 40.44 | 40.71 | 40.98 |
| Maximum Power Voltage(Vmp) [V] | 33.06 | 33.44 | 33.80 | 34.16 | 34.52 |
| Short Circuit Current(Isc) [A] | 10.12 | 10.16 | 10.20 | 10.24 | 10.28 |
| Maximum Power Current(Imp) [A] | 9.68 | 9.72 | 9.76 | 9.81 | 9.85 |
| Module Efficiency [%] | 19.0 | 19.3 | 19.6 | 19.9 | 20.2 |
| Dimensions | 1686× 1000 × 35mm | ||||
| Junction Box | IP68 | ||||
| Warranty | 12 years limited product warranty, 25 years limited linear power warranty. | ||||
| Weight | 18.8Kg | ||||
Packageof 120cells Half-cut Solar Panels
| 120cells Solar Panel | 20`GP | 40`GP | 40`HC |
| Pcs/Pallet | 30 | 30 | 30 |
| Pallets/Container | 14 | 26 | 28 |
| Pcs/Container | 400 | 780 | 840 |
| 144cells Solar Panel | 20`GP | 40`GP | 40`HC |
| Pcs/Pallet | 27 | 27 | 27 |
| Pallets/Container | 10 | 22 | 24 |
| Pcs/Container | 270 | 572 | 696 |
Customization Packageis Acceptable
Projects made by SUNTREE solar
Grid tie solar system connects to grid, self consumption first,excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
