Solar Panel

    • Small Solar Panel 5W 10W 20W 30W 50W 60W 80W Monocrystalline PV Module 12V 24V 36Cells

    Small Solar Panel 5W 10W 20W 30W 50W 60W 80W Monocrystalline PV Module 12V 24V 36 Cells

    • Brand:

      SUNTREE OR OEM SERVICE

    • Product Origin:

      China

    • Shipping Port:

      Ningbo Or Shanghai

    • Number Of Cells:

      36

    • Solar Cell:

      5bb mono 156*156mm

    • Power Ranger:

      5w - 150w

    • Type:

      PERC

    • Certification:

      CE/TUV/IEC

    • Lead Time:

      7days

    • Payment:

      T/T,Credit Card, Paypal, Western Union

    • Warranty:

      25 years

    Product Details

    Small Solar Panel 5W 10W 20W 30W 50W 60W 80W Monocrystalline PV Module 12V 24V 36Cells

    small solar panel



    PV Moduel

    		GSM5W-36
    		GSM10W-36
    		GSM20W-36

    GSM30W-36

    Rated Maximum Power(Pmax) [W]
    		5W

    10W

    		20W
    		30W
    Open Circuit Voltage(Voc) [V]
    		22.64
    		22.64
    		22.58
    		22.2
    Maximum Power Voltage(Vmp) [V]
    		18.57
    		18.57
    		18.82
    		17.8
    Short Circuit Current(Isc) [A]
    		0.29
    		0.58
    		1.19
    		1.801
    Maximum Power Current(Imp) [A]
    		0.27
    		0.54
    		1.08
    		1.686
    Weight (kg)
    		0.7
    		1.2
    		2.3
    		2.5
    Module Dimension(mm)
    		260*210*17
    		250*360*17
    		350*480*17
    		350*540*25



    PV Moduel
    		GSM40W-36
    		GSM50W-36
    		GSM60W-36
    		GSM80W-36
    Rated Maximum Power(Pmax) [W]
    		40W
    		50W
    		60W
    		80W
    Open Circuit Voltage(Voc) [V]
    		22.3
    		22.4
    		22.0
    		21.75
    Maximum Power Voltage(Vmp) [V]
    		17.8
    		17.8
    		17.6
    		17.79
    Short Circuit Current(Isc) [A]
    		2.392
    		3.017
    		3.685
    		5.01
    Maximum Power Current(Imp) [A]
    		2.248
    		2.809
    		3.41
    		4.78
    Weight (kg)
    		3.2
    		4.0
    		4.2
    		6.6
    Module Dimension(mm)
    		350*660*25
    		410*670*25
    		540*670*30
    		780*670*30


    PV Moduel

    		GSM100W-36
    		GSM120W-36
    		GSM140W-36
    		GSM150W-36
    Rated Maximum Power(Pmax) [W]
    		100W
    		120W
    		140W
    		150W
    Open Circuit Voltage(Voc) [V]
    		22.14
    		22.64
    		23.04
    		23.24
    Maximum Power Voltage(Vmp) [V]
    		18.42
    		18.83
    		19.64
    		20.03
    Short Circuit Current(Isc) [A]
    		5.61
    		6.818
    		7.642
    		8.054
    Maximum Power Current(Imp) [A]
    		5.47
    		6.375
    		7.145
    		7.53
    Weight (kg)
    		6.6
    		8.0
    		8.0
    		8.0
    Module Dimension(mm)
    		780*670*30
    		1020*670*30
    		1205*676*30
    		1205*676*30

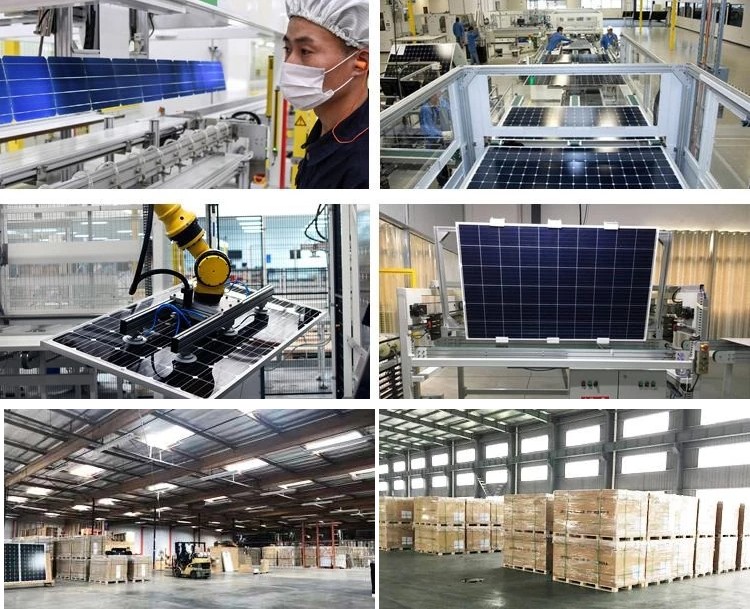

    Small Solar Panel Production

    solar panel factory

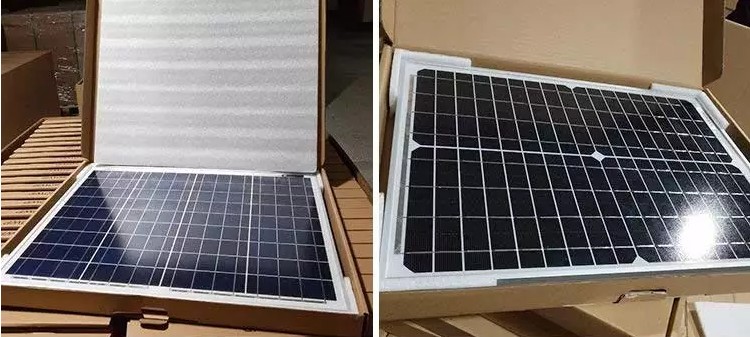

    Small Solar Panel Package

    20w 50w 200w solar panel

    100w mono solar panel

    12v 24v solar panel package

    26units to 30units5BB solar cells solarpv module360wpin one wood pallet

    10pallets solar panels in a 20ft container

    24pallets pv modules in a 40ft HQ container

    Customization Packageis Feasibility

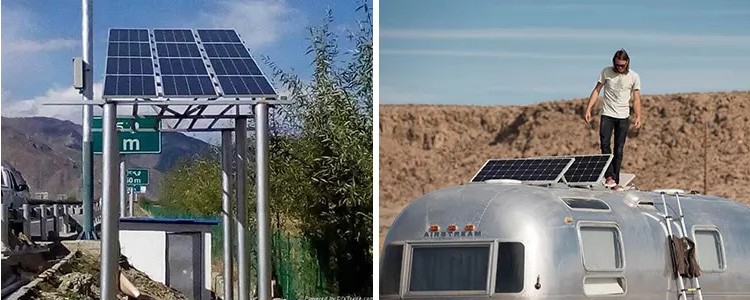

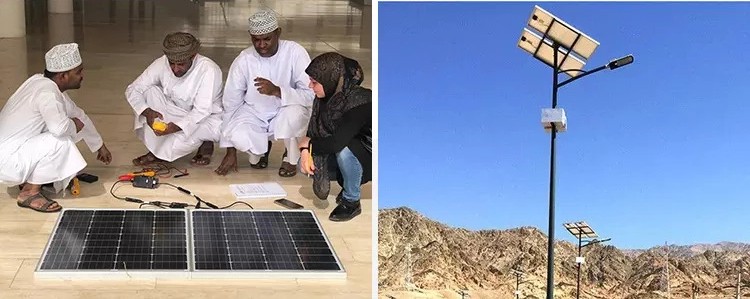

    Projects made by SUNTREE solar

    20W solar panel

    portable solar panel


    Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .

    Including Sea transportation ,Air transportation , Land transportation and Express .

    All solar panels have CE, TUV, IEC certificates, 25 years warranty.

    5BB PERC solar cells, OEM, ODM service acceptable.
