Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Type:
Grid Tied
Output Voltage :
EU and US standard
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
15days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years
Complete 100kw solar system on grid for commercial building
Specification for 100kw solar system on grid
100kw Grid tied solar power systems | ||
Components Name | Description | Quantity(PCS) |
GSP350-72, poly 350W | Voltage:36V Size: 1960*990*40mm | 288 |
Grid tie Inverter 30KW | Three phase EU Standard or USA Standard | 3 |
Monitoring device | Monitor the whole solar system | Wifi or shine box |
PV Combiner Box | customized, 6input 6output | 3 |
PV Cable | 4mm2 | 1600 |
MC4 Connector | DC 1500V | 72 |
Mounting bracket | roof and ground type; Aluminum/ Galvanized steel;Customized | 1set |
Package for 100kw solar system on grid
Projects made by SUNTREE solar

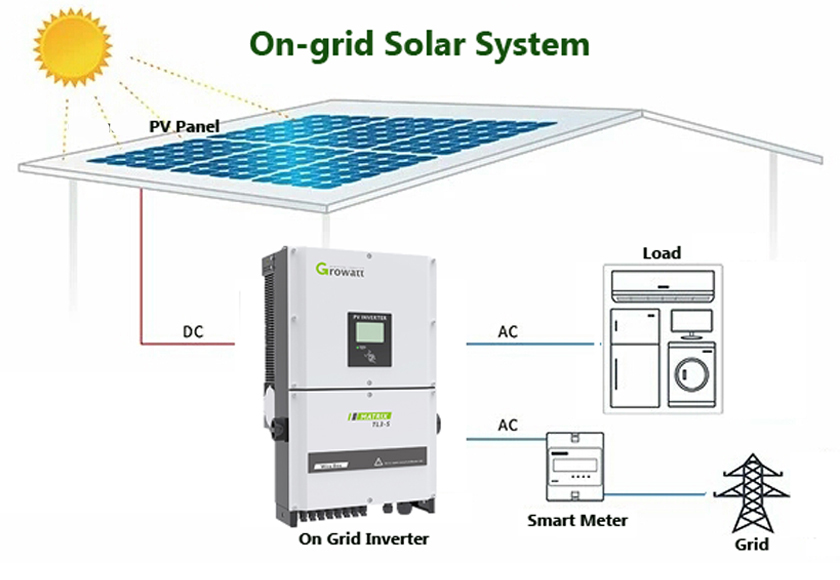

Grid tie solar system connects to grid, self consumption first, excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
