Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Type:
Grid Tied / On Grid
Max Power :
80KW 100KW 120KW 150KW 180KW 200KW
Output Voltage :
EU and US standard
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
15days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years
150 KW Solar Kit Solar Power Plant 150 KW On-Grid Solar Power System for Commercial Application
On Grid Complete Solar Power Systems Datasheet
| Components | 80KW-ON | 100KW-ON | 120KW-ON | 150KW-ON | 180KW-ON |

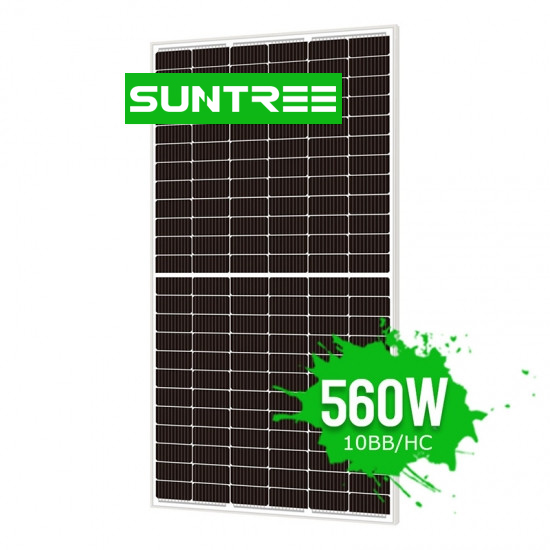

| Solar Panel | 195 Pcs | 240 Pcs | 300 Pcs | 360 Pcs | 440 Pcs |

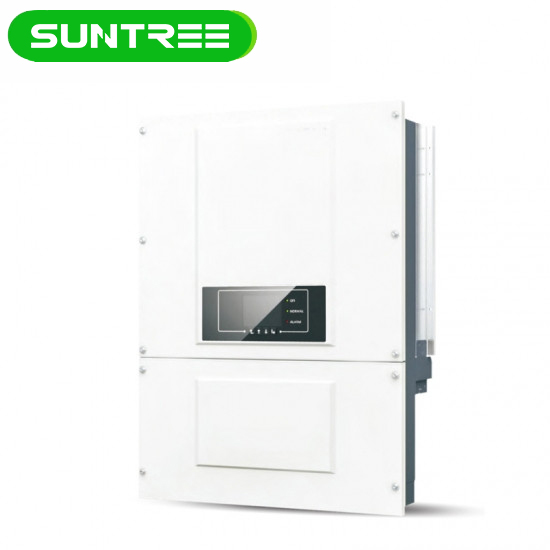

| On Grid Inverter | 80KW | 50KW(2pcs) | 60KW(2pcs) | 70KW(2pcs) | 60KW(3pcs) |
| DC Combiner Box | 1 Piece | 2 Piece | 2 Piece | 2 Piece | 3 Piece |
| PV Cable 4MM2 | 500 Meter | 800 Meter | 800 Meter | 1000 Meter | 1500 Meter |
| Mounting Brackets | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |
| MC4 Connector | 200 Pieces | 200 Pieces | 300 Pieces | 300 Pieces | 400 Pieces |
| Installation Tool | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |
Factory Production
Complete On Grid Solar Power System Package and Shipping

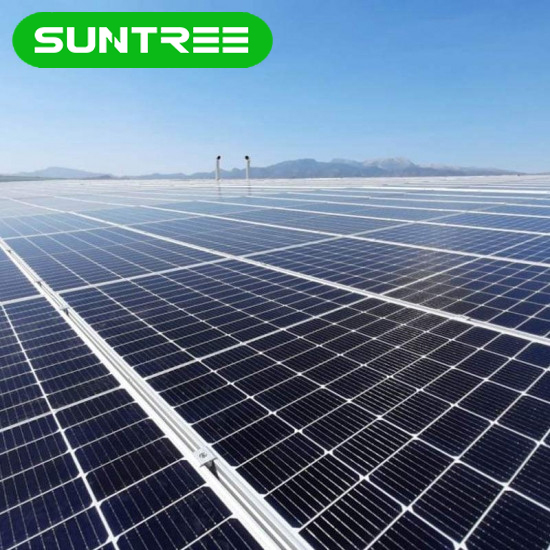

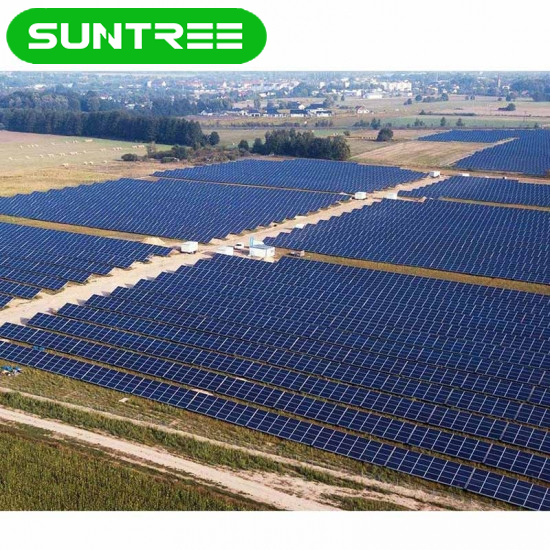

SUNTREE Solar Energy Systems Projects
We offer complete solar power system solution with free design.
Solar energy systems follow the standard of CE, TUV, IEC, VDE, CEC,UL,CSA,,,etc.
Solar power system output voltage can 110V, 120V, 120/240V, 220V,230V, 240V, 380V,400V,480V.
OEM and ODM all acceptable.
15Years complete solar system warranty.
Grid tie solar system connects to grid, self consumption first,excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
