Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
120cells
Solar Cell:
5bb mono 156*156mm
Power Ranger:
320W-340W
Size:
1675mm × 992mm×35mm
Type:
Half-cut cells
Max Power :
340Watt
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

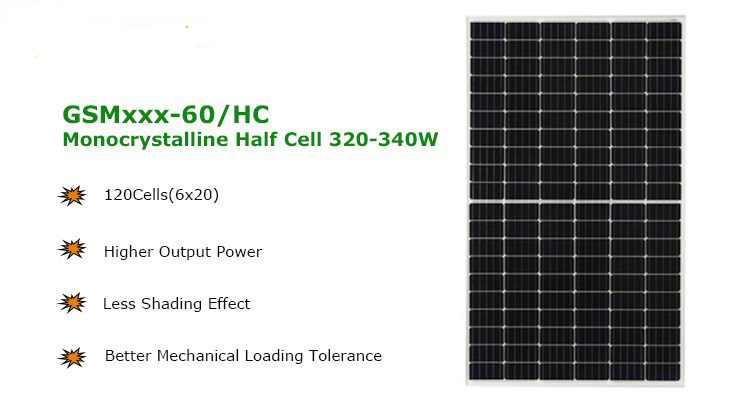

5BB Half Cut 120cells Mono Solar Panel 320w 325w 330w 335w 340w PV Modules
Specification for Half-cut Cells Solar Panel Monocrystalline
PV Module | GSM320-60HC | GSM325-60HC | GSM330-60HC | GSM335-60HC | GSM340-60HC |
| Rated Maximum Power(Pmax) [W] | 320 | 325 | 330 | 335 | 340 |
| Open Circuit Voltage(Voc) [V] | 40.27 | 40.56 | 40.84 | 41.12 | 41.36 |
| Maximum Power Voltage(Vmp) [V] | 33.62 | 33.87 | 34.13 | 34.36 | 34.63 |
| Short Circuit Current(Isc) [A] | 10.16 | 10.23 | 10.30 | 10.38 | 10.46 |
| Maximum Power Current(Imp) [A] | 9.52 | 9.60 | 9.67 | 9.75 | 9.82 |
| Module Efficiency [%] | 19.0 | 19.3 | 19.6 | 19.9 | 20.2 |
|
Dimensions |
1675±2mm × 992±2mm × 35mm | ||||
|
Junction Box |
IP68, 3 diodes | ||||
|
Warranty |
12 years limited product warranty, 25 years limited linear power warranty. | ||||
|
Weight |
18.7Kg | ||||

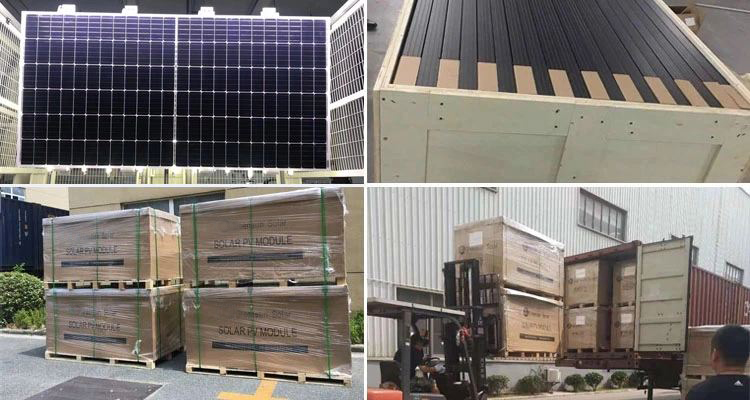

Package & Transport of 120cells Half-cut Solar Panels
| 120cells Solar Panel |
20`GP |
40`GP |
40`HC |
| Pcs/Pallet |
30 |
30 |
30 |
| Pallets/Container |
14 |
28 |
30 |
| Pcs/Container |
400 |
840 |
900 |
| 144cells Solar Panel |
20`GP |
40`GP |
40`HC |
| Pcs/Pallet |
27 |
27 |
27 |
| Pallets/Container |
10 |
22 |
24 |
| Pcs/Container |
270 |
572 |
696 |
Customization Package is Acceptable

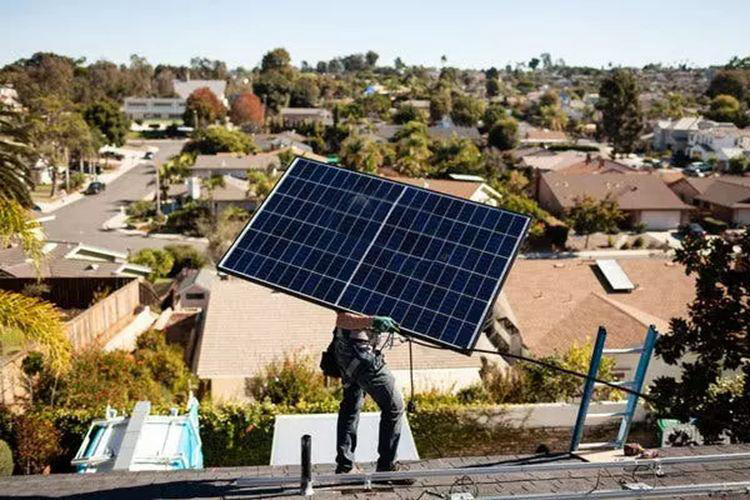

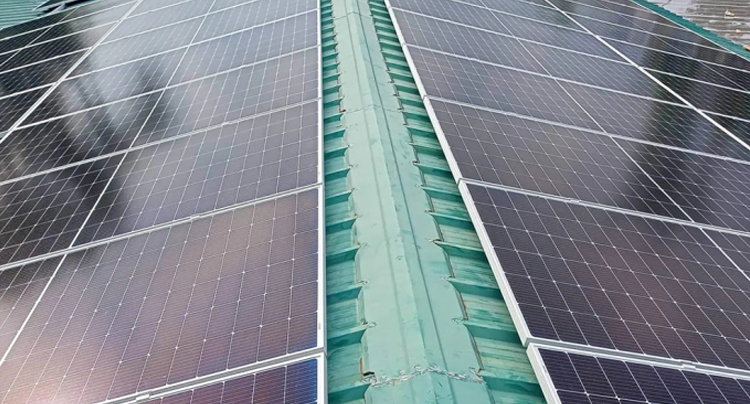

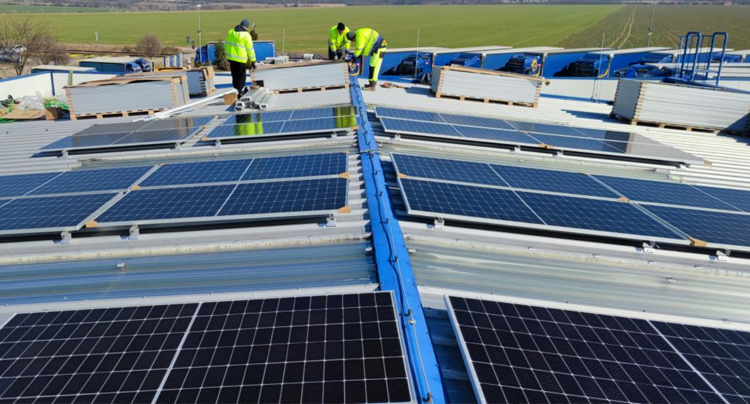

Projects made by SUNTREE solar
Grid tie solar system connects to grid, self consumption first, excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
