Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
72
Solar Cell:
5bb Poly 156*156mm
Power Ranger:
330W-350W
Size:
1960*990mm
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

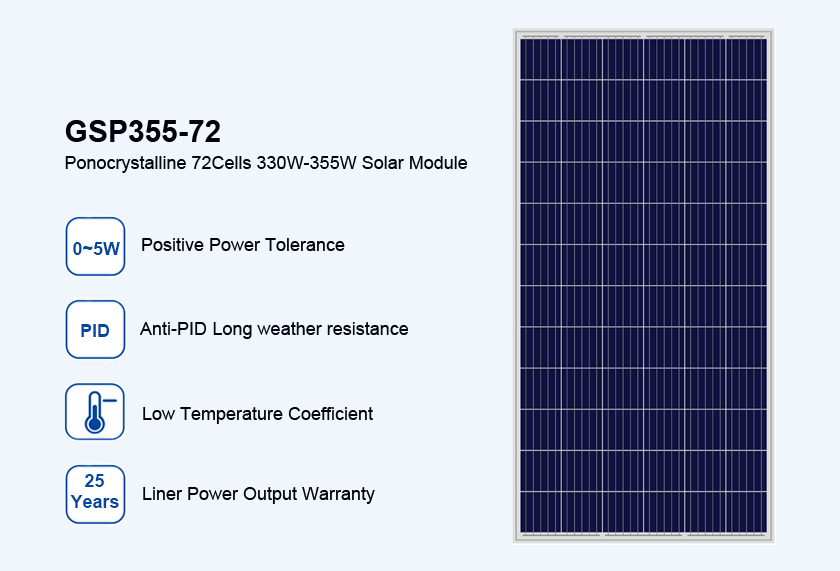

25 years warranty polycrystalline 320wp solar power panel for home
Specification for 320wp solar power panel
| PV Module | GSP335-72 | GSP340-72 | GSP345-72 | GSP350-72 |
| Rated Maximum Power(Pmax) [W] | 335 | 340 | 345 | 350 |
| Open Circuit Voltage(Voc) [V] | 46.70 | 46.87 | 47.06 | 47.24 |
| Maximum Power Voltage(Vmp) [V] | 37.83 | 38.09 | 38.33 | 38.58 |
| Short Circuit Current(Isc) [A] | 9.35 | 9.43 | 9.52 | 9.61 |
| Maximum Power Current(Imp) [A] | 8.87 | 8.94 | 9.01 | 9.07 |
| Module Efficiency [%] | 17.2 | 17.5 | 17.7 | 18.0 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | |||
| STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | |||
|
Size |
1960*990*40/45mm | |||
|
Weight |
22.5kg(49.6lb) | |||
Package for 320wp solar power panel
26units to 30units 320wp solar power panel in one wood pallet
10pallets solar panels in a 20ft container
24pallets pv modules in a 40ft HQ container
Customization Package is Feasibility
Projects made by SUNTREE solar
On grid solar system connects to grid, self consumption first, excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Solar power storage system can connect to grid, self consumption, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Stand alone solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
