Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Type:
Hybrid
Max Power :
10kw 15kw 20kw 10kw 25kw 30kw,,etc
Output Voltage :
EU USA Standard
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
15days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

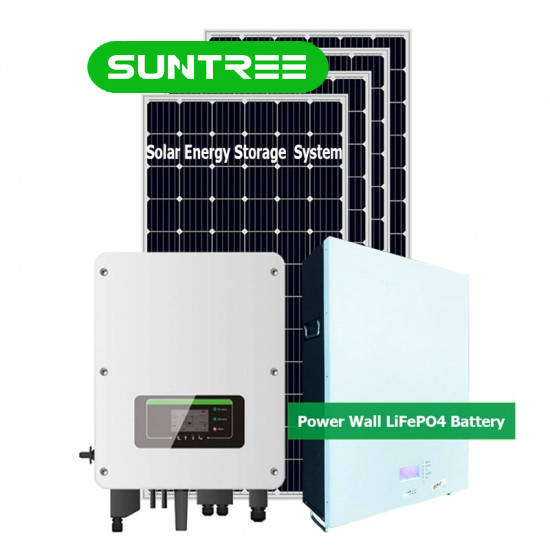

Storage Home Solar Power System 15KW Hybrid Solar Energy Systems with Lithium Battery 20KWH
Specification for Energy Storage Solar Power Systems
| Hybrid Solar Energy System | |||||
| Components | 10KW-HY | 16KW-HY | 20KW-HY | 25KW-HY | 30KW-HY |
| AC Voltage （EU/USA） | 110 - 240V | 110 - 240V | 110 - 240V | 110 - 240V | 110 - 240V |
| Solar Panel | 20 Pieces | 30 Pieces | 40 Pieces | 50 Pieces | 60 Pieces |
| Hybrid Inverter | 10KW | 16KW | 20KW | 25KW | 30KW |
| Powerwall Battery | 48V 2KWH | 48V 2KWH | 48V 30KWH | 48V 30KWH | 48V 50KWH |
| DC Combiner Box | 1 Pieces | 2 Pieces | 2 Pieces | 3 Pieces | 3 Pieces |
| PV Cable | 300 M | 300 M | 500 M | 500 M | 600 M |
| Brackets | 1Set | 1Set | 1Set | 1Set | 1Set |
| MC4 Connector | 20 Pieces | 30 Pieces | 40 Pieces | 50 Pieces | 50 Pieces |
| Installation Tool | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |
PackageforEnergy Storage Solar Power System Home Use
Energy Storage Solar Power System Projects
We offer complete solar power system solution with free design.
Solar energy systems follow the standard of CE, TUV, IEC, VDE, CEC,UL,CSA,,,etc.
Solar power system output voltage can 110V, 120V, 120/240V, 220V,230V, 240V, 380V,400V,480V.
OEM and ODM all acceptable.
10Years complete solar system warranty.
Grid tie solar system connects to grid, self consumption first,excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid Energy Storage solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
