Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Type:
Grid Tied
Max Power :
3kw 5kw 8kw 10kw
Output Voltage :
EU and US standard
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
15days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years
Two phase 5kw grid tied solar system home with monitoring
Specification for solar system home with monitoring
5kw Grid tied solar power systems | ||
Components Name | Description | Quantity(PCS) |
Molar Panel | Half Cell Solar Panel Monocrystalline | 10 |
Grid Tie Inverter 5KW | Single phase EU Standard or USA Standard | 1 |
Monitoring Device | Monitor the whole solar system | Wifi or shine box |
PV Combiner Box | Customized | 1 |
PV Cable | 4mm2 | 200 |
MC4 Connector | DC 1500V | 12 |
Mounting bracket | roof and ground type; Aluminum/ Galvanized steel;Customized | 1set |
Package for solar system home with monitoring
Projects made by SUNTREE solar

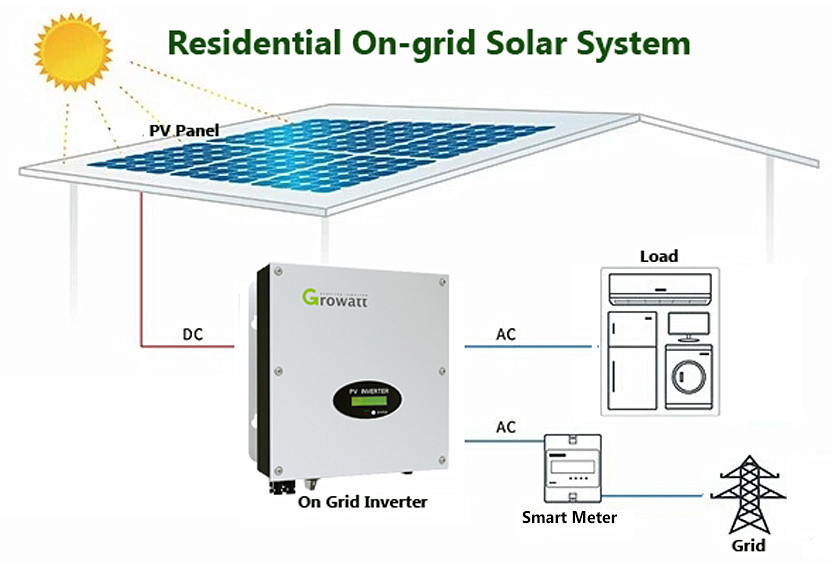

Grid tie solar system connects to grid, self consumption first, excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
