Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Shenzhen/Shanghai/Ningbo
Lead Time:
30Days
Voltage :
AC 360-415VAC; 208-240VAC; 460-480VAC
Cycle Life:
6000Cycles
Material:
LiFePO4
Certification:
CE TUV UL IEC MSDS
Warranty:
5years warranty
Commmercial Eenergy Storage System 50KW 100KW 150KW 250KW Battery Energy Storage Solutions
Wide Applications&Multi Functions of BESS Battery Energy Storage System
Configuration of BESS Battery Energy Storage System
| Configuration of ESS Energy Storage System | |||||
| Battery System Data | |||||
|
Battery Type |
LFP | ||||
|
DC Voltage Range |
450-540VDC |
480-560VDC |
480-560VDC |
576-672VDC |
576-672VDC |
|
Nominal Capacity |
48KWH |
102.4KWH |
204.8KWH |
368.64KWH |
516.09KWH |
|
Nominal Output Power |
30KW |
50KW |
100KW |
150KW |
250KW |
| Inverter Technical Specification | |||||
|
MAX PV Input Power |
45KW |
75KW |
150KW |
225KW |
300KW |
|
PV Input Voltage Range |
1000VDC |
1000VDC |
1000VDC |
1000VDC |
1000VDC |
|
Number of MPPT |
1 |
1 |
1 |
1 |
3 |
|
Short-Circuit Current of PV | |||||
|
Battery Voltage Range |
352-600VDC | ||||
|
Max Charge/Discharge Current |
100A/93 |
150A/156A |
300A/313A |
350A/374A |
450A/467A |
|
AC Rated Voltage&AC Rated Frequency |
360-415VAC; 50/60HZ | ||||
| On Grid Mode of Inverter | |||||
|
Rated AC Power(KW) |
30KW |
50KW |
100KW |
150KW |
250KW |
|
Rated AC Output Voltage(V) |
360-415VAC | ||||
|
Rated AC Output Frequency(Hz) |
50/60HZ | ||||
|
THDI |
<3% | ||||
| Off Grid Mode of Inverter | |||||
|
Rated AC Power(KW) |
30KW |
50KW |
100KW |
150KW |
250KW |
|
Rated AC Output Voltage(V) |
360-415VAC | ||||
|
Rated AC Output Frequency(Hz) |
50/60HZ | ||||
|
Over Load Capacity |
110%-10 mins 120%-1min | ||||
| UPS Data of Inverter | |||||
|
Rated AC Power(KW) |
30KW |
50KW |
100KW |
150KW |
250KW |
|
Rated AC Output Voltage(V) |
360-415VAC | ||||
|
Rated AC Output Frequency(Hz) |
50/60HZ | ||||

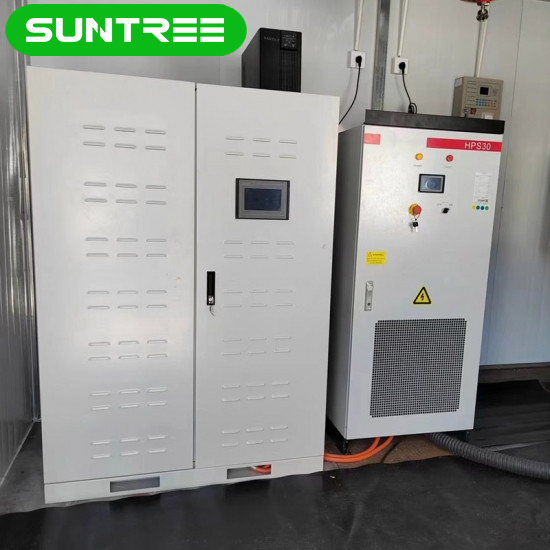

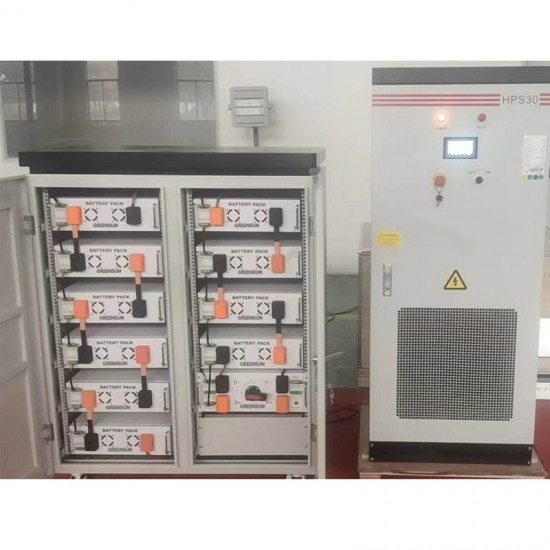

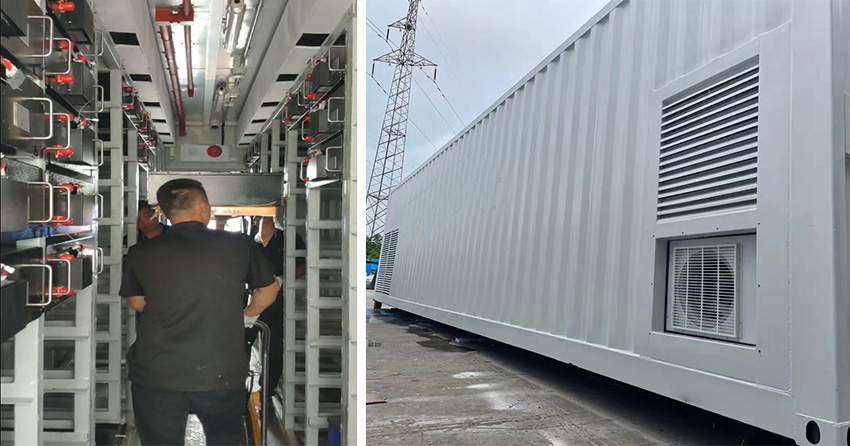

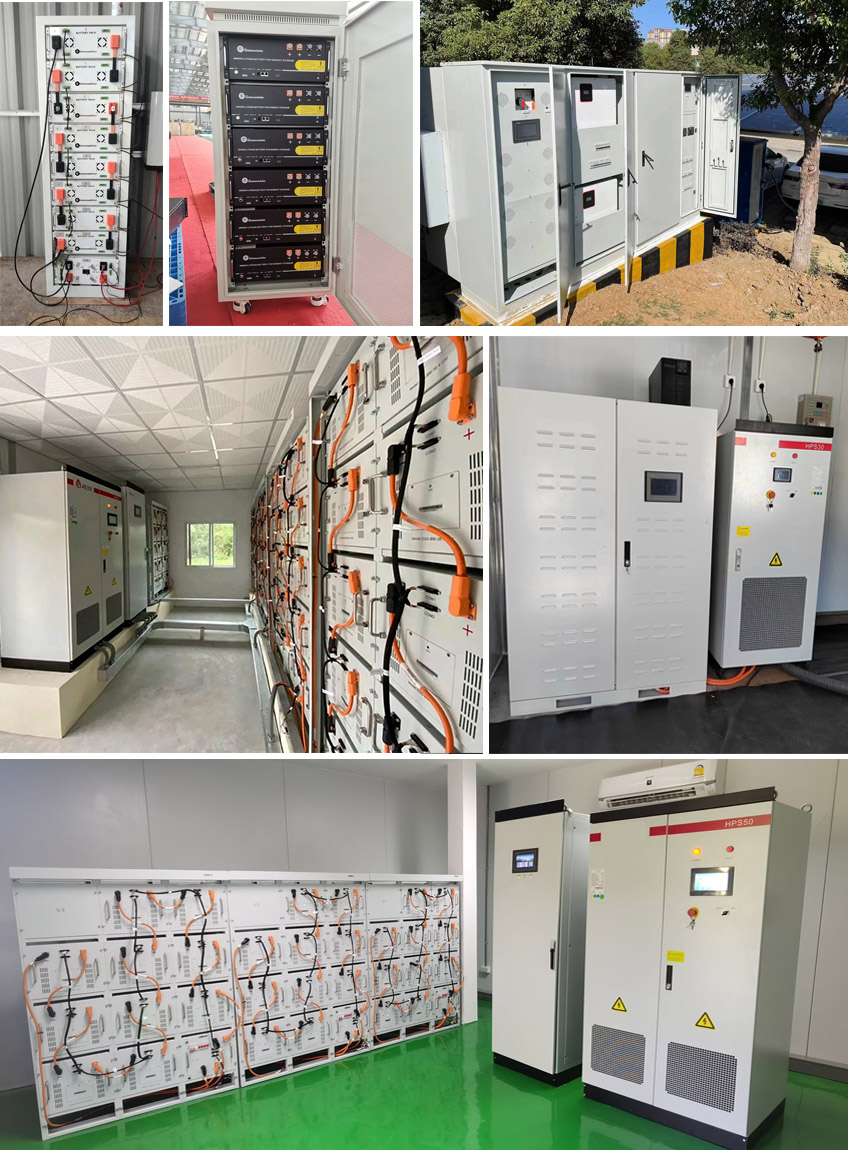

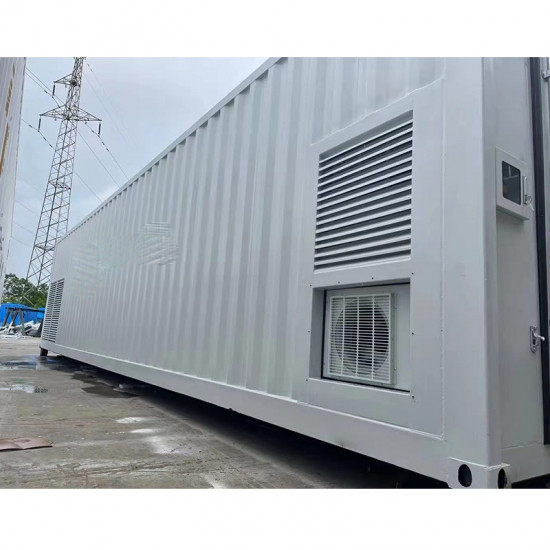

Projects of SUNTREE C&I Energy Storage System
This high voltage lithium battery is a rack mountable battery storage system for island and large commercial use.
It can provide safe and reliable energy storage for daily use and backup of large solar energy storage systems.
Suitable for outdoor use, the system is simple to install and is compatible with most energy storage inverters from industry leading manufacturers including Deye, Sol-Ark, SMA, Schneider, Growatt, Atess, Outback, Megarevo and many more.
