Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Shenzhen/Shanghai/Ningbo
Lead Time:
30Days
Voltage :
AC 360-415VAC; 208-240VAC; 460-480VAC
Cycle Life:
6000Cycles
Material:
LiFePO4
Certification:
CE TUV UL IEC MSDS
Warranty:
5years warranty
SUNTREE One-Stop Solutions and Service
Residential Energy Storage System Solution 3KW 5KW 6KW 8KW 10KW 12KW 15KW 20KW
Wide Applications&Multi Functions of Residential Energy Storage System
(US / EU Version both can be avaiable, Single Phase/Split Phase/Three Phase Optional)
1. Self-Comsumption
2. Backup power Supply, UPS/EPS
3. Peak Shaving
4. Demand Charging Management
5. Off Grid
6. 24/7 Online Monitor
7. Safe&Reliable (LFP Only)
8. Easy Installation and Expansion
9. High Compatibility

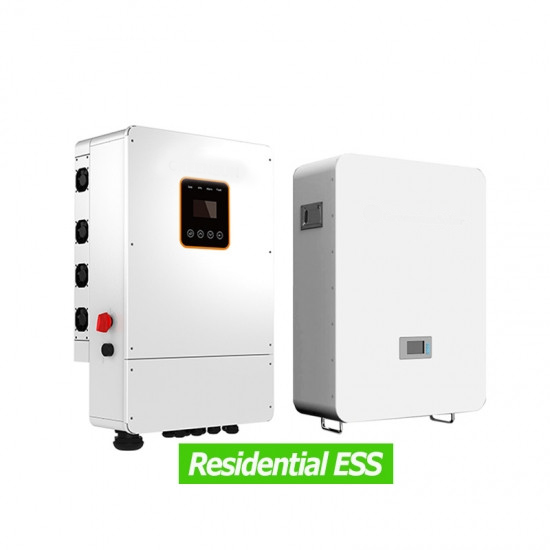

| Residential ESS | ||||||

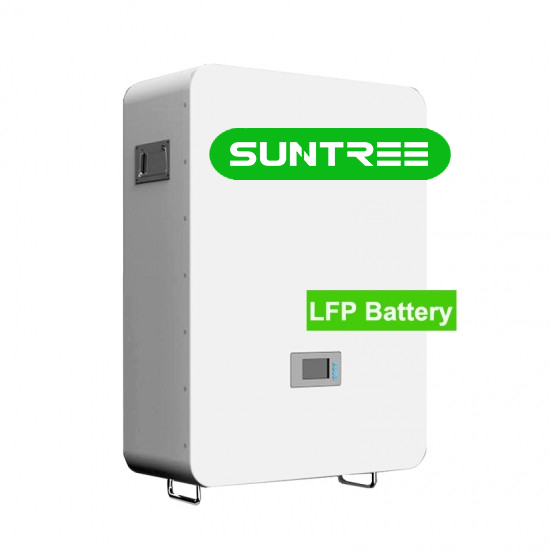

| Battery Data | ||||||
|
Battery Type | LFP | LFP | LFP | LFP | LFP | LFP |
|
DC Voltage Range |
40-60VDC |
40-60VDC |
40-60VDC |
180-700VDC |
180-700VDC | 180-700VDC |
|
Nominal Capacity | 5KWH |
10KWH |
20KWH |
20KWH |
40KWH | 50KWH |
|
Nominal Output Power |
5KW |
8KW |
10KW |
15KW |
20KW | 30KW |

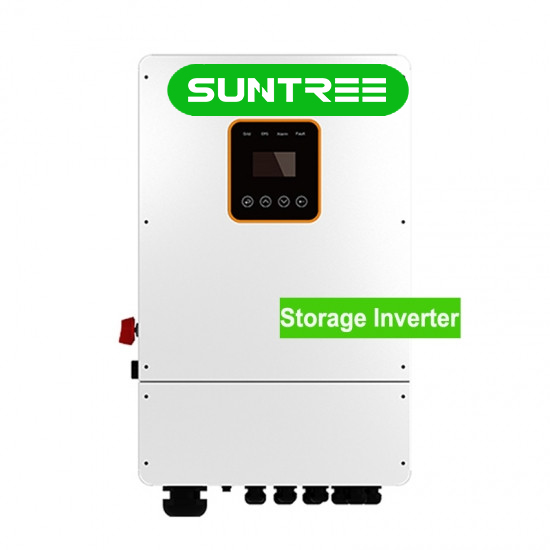

| Inverter Technical Specification | ||||||
|
MAX PV Input Power |
6.5KW |
10.4KW |
13KW |
19.5KW |
26KW | 36KW |
|
PV Input Voltage Range |
600VDC |
800VDC |
800VDC |
1000VDC |
1000VDC | 1000VDC |
|
Number of MPPT |
2 |
2 |
3 | 2 | 2 | 3 |
|
Short-Circuit Current of PV | ||||||
|
Battery Voltage Range | 40-60VDC | 40-60VDC | 40-60VDC |
180-700VDC | 180-700VDC | 200-800VDC |
|
Max Charge/Discharge Current |
120A/120A |
190A/190A |
210A/210A |
50A/50A |
50A/50A | 100A/100A |
|
AC Rated Voltage&AC Rated Frequency | Single Phase 220-240VAC | 360-415VAC | 360-415VAC | 360-415VAC | 360-415VAC | 360-415VAC |
| On Grid Mode of Inverter | ||||||
|
Rated AC Power(KW) |
5KW |
8KW |
10KW |
15KW |
20KW | 30KW |
|
Rated AC Output Voltage(V) | Single Phase 220-240VAC | 360-415VAC | 360-415VAC | 360-415VAC | 360-415VAC | 360-415VAC |
|
Rated AC Output Frequency(Hz) |
50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
|
THDI |
<3% | <3% | <3% | <3% | <3% | <3% |
| Off Grid Mode of Inverter | ||||||
|
Rated AC Power(KW) |
5KW |
8KW |
10KW |
15KW |
20KW | 30KW |
|
Rated AC Output Voltage(V) | Single Phase 220-240VAC | 360-415VAC | 360-415VAC | 360-415VAC | 360-415VAC | 360-415VAC |
|
Rated AC Output Frequency(Hz) |
50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Over Load Capacity | 110%-10 mins 120%-1min | |||||
| UPS Data of Inverter | ||||||
|
Rated AC Power(KW) |
5KW |
8KW |
10KW |
15KW |
20KW | 30KW |
|
Rated AC Output Voltage(V) | Single Phase 220-240VAC | 360-415VAC | 360-415VAC | 360-415VAC | 360-415VAC | |
|
Rated AC Output Frequency(Hz) |
50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |

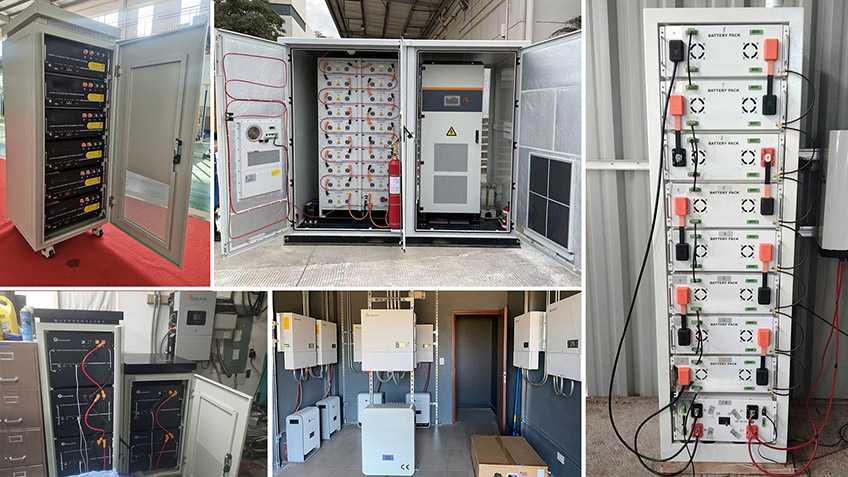

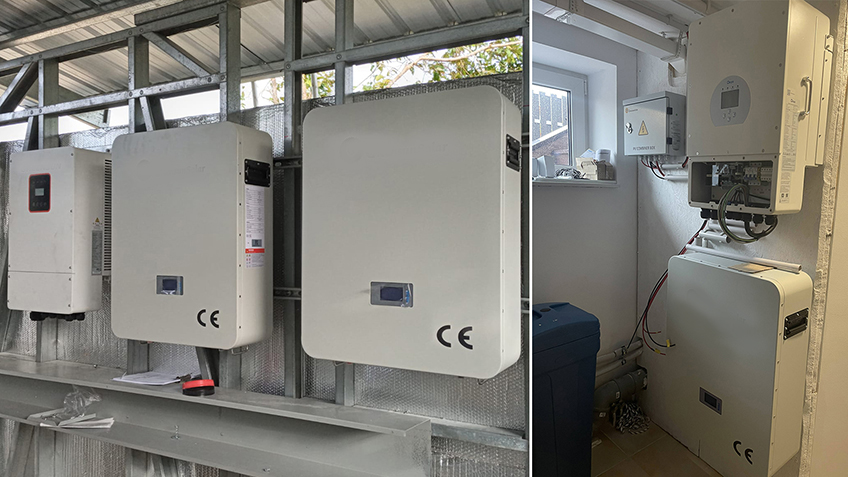

Projects of SUNTREE Home Energy Storage System
