Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Lead Time:
7-15days
Type:
On Grid
Output Voltage :
220-240V
Item No:
Single Phase
Certification:
CE, TUV, IEC, UL, VDE,,,,etc
Lead Time:
10days
Warranty:
5-10 years

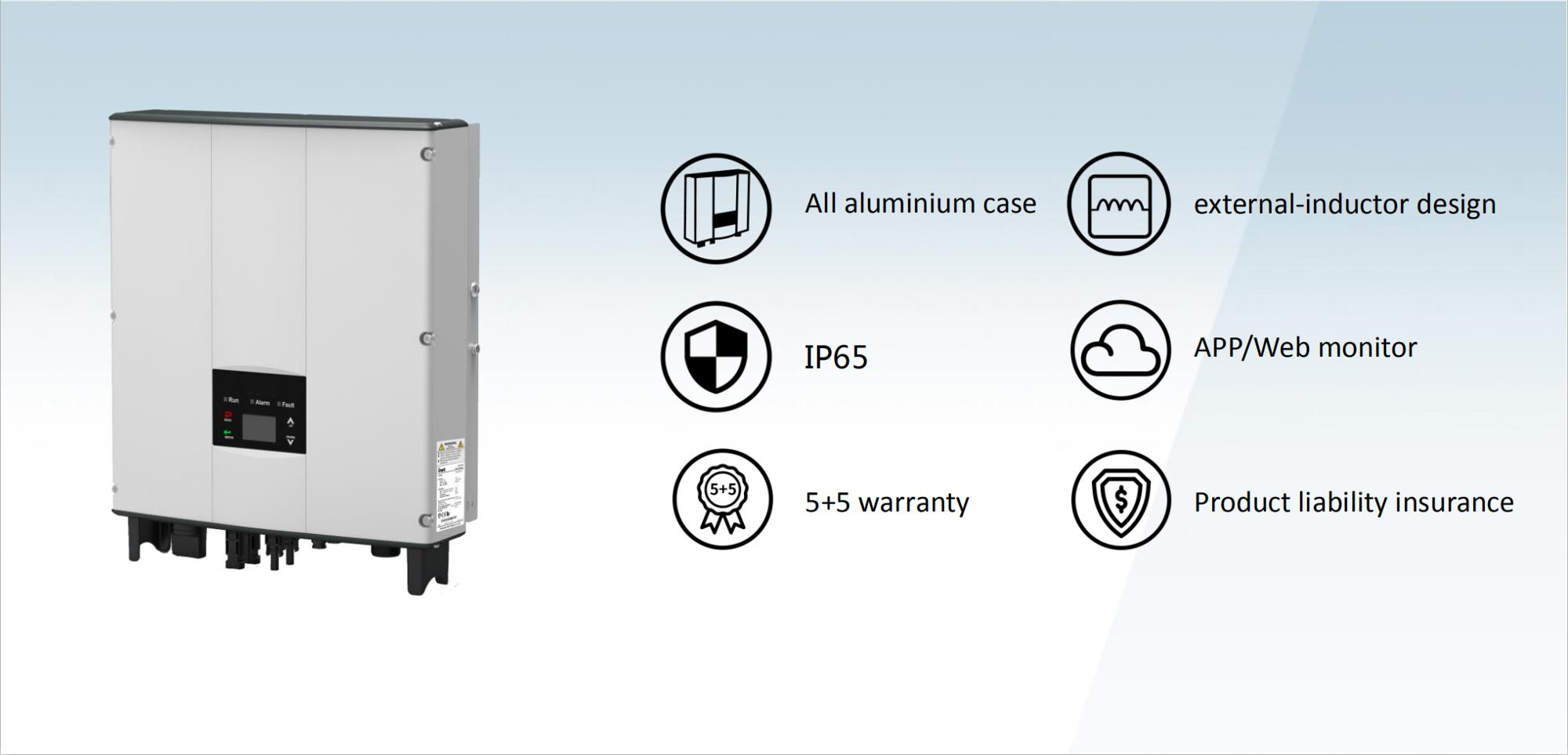

SUNTREE Grid Tie String Solar Inverter for Home

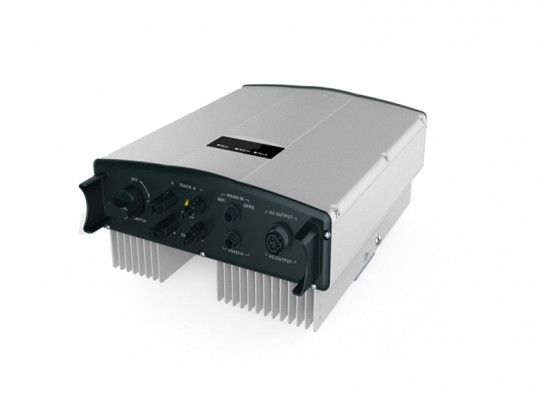

Grid Tie Solar Inverter Single Phase 1kw 2kw 3kw 4kw 5kw On Grid Inverter
| Model | 1KW | 2KW | 3KW | 4.6KW | 5KW | 6KW | 7.5KW |
|
Max Input Power |
1200W |
2200W |
3300W |
5000W |
5000W |
6600W |
8300W |
|
Max DC Input Voltage |
450V |
450V |
500V |
600V |
600V |
600V |
600V |
|
Start-up Input Voltage |
100V |
120V |
120V |
120V |
120V |
120V |
120V |
|
Grid Voltage Range |
180~270V (According to local standard) | ||||||
|
Nominal Frequency |
50/60Hz | ||||||
|
Grid Frequency Range |
47-53 / 57-63Hz (According to local standard) | ||||||
|
Grid Connection |
Single Phase | ||||||
|
Max Efficiency |
97.2% |
97.2% |
97.3% |
97.6% |
97.6% |
97.6% |
97.6% |
|
MPPT Efficiency |
>99.9% | ||||||
|
Protection |
PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid Monitoring, Island protection, DC monitoring, Short current protection etc. | ||||||
|
Communication Interface |
RS485(standard); WIFI | ||||||
|
Certification |
IEC 62116, IEC61727, IEC61683, IEC60068, CE, CGC, AS4777, VDE4105, C10-C11, G83/G59 | ||||||
|
Warranty |
5years, 7years, 10years | ||||||
|
Temperature Range |
-25℃ to +60℃ | ||||||
|
DC Terminal |
Waterproof Terminals | ||||||
|
Demension(H*W*D mm) |
280*300*138 |
280*300*138 |
280*300*138 |
280*300*138 |
344*478*170 |
344*478*170 |
405*315*170 |
|
Approx Weight |
9.5kg |
9.5kg |
9.5kg |
11.5kg |
11.5kg |
11.5kg |
11.5kg |
Grid tie (utility tie) PV systems consist of solar panels and an on grid inverter, without batteries.
The solar panel provides a special inverter that directly converts the DC voltage of the solar panel into an AC power source matching the power grid.
Extra power can sale to local city grid to reduce your home electricity fee.
On-grid inverter specifications include single-phase 220-240v, 50hz; three-phase 380-415V 50hz; single-phase 120v / 240v ,240v 60hz and three-phase 480v.

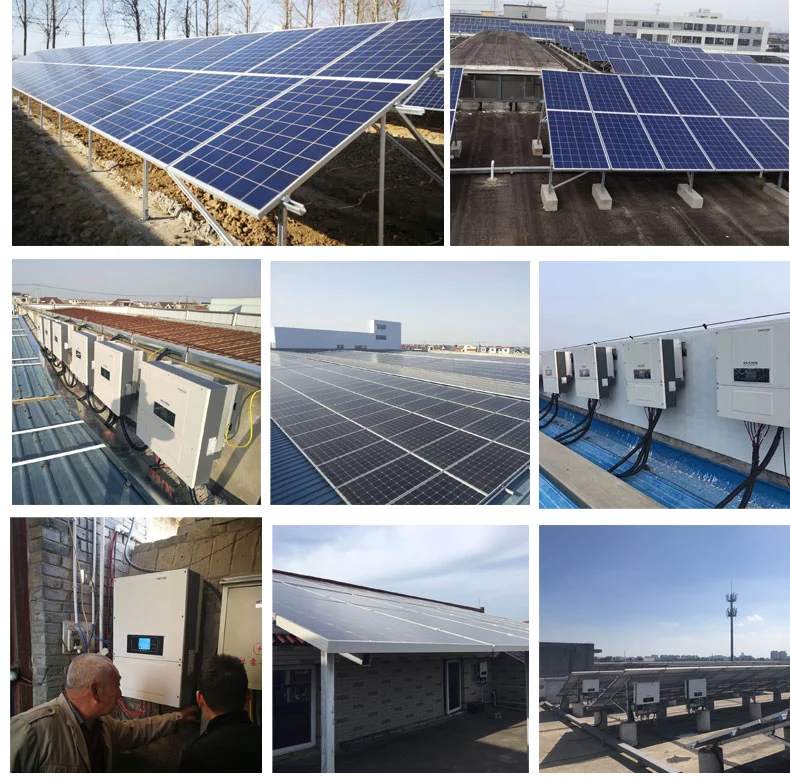

Our Company Projects for Reference
