Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Type:
Hybrid
Output Voltage :
360-440V
Item No:
3Phase
Certification:
CE, TUV, IEC, UL, VDE,,,,etc
Lead Time:
10-20days
Warranty:
10 years

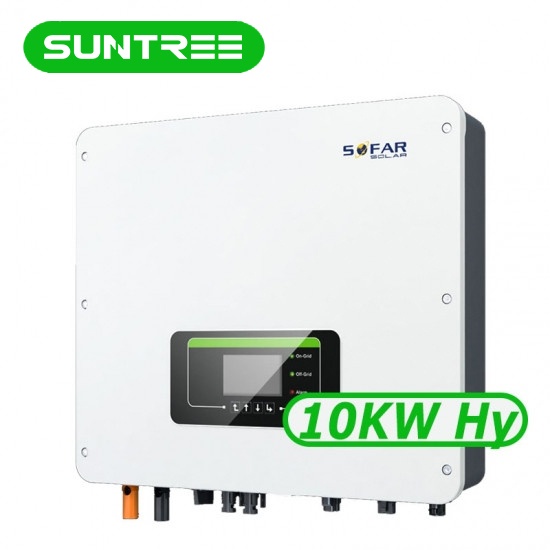

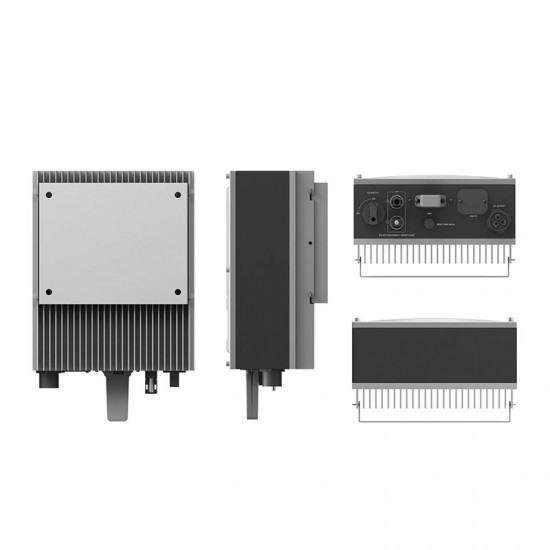

SUNTREE 3Phase Hybrid Inverter for ESS HESS
3 Phase Hybrid Inverter 10KW 12KW 15KW 20KW On/Off Grid Inverter Solar Inverter Price
| Model | 12KW | 10KW | 15KW | 20KW |
| Battery Input Data | Lithium ion/Lead Acid | Lithium Ion/Lead Acid | ||
| Battery Voltage | 48VDC(40-60V) | 180VDC-800VDC | 180VDC-800VDC | 180-800VDC |
| Battery Voltage Range of Full Load | 40-60V | 200-800VDC | 300-800VDC | 400-800VDC |
| Max Charging/Discharging Power | 12000W | 10000W | 15000W | 20000W |
| Max. charging/discharging current | 240A/240A | 50A(25A/25A) | 50A(25A/25A) | 50A(25A/25A) |
| Communication interfaces | CAN(RS485) | CAN(RS485) | CAN(RS485) | CAN(RS485) |
| PV Input Data | ||||
| Recommended Max. PV input power | 15600W | 15000Wp | 22500Wp | 30000Wp |
| Max. DC voltage | 800V | 1000V | 1000V | 1000V |
| Nominal DC voltage | 550VDC | 600VDC | 600VDC | 600VDC |
| Max. input current | 25A/12.5A | 25A/25A | 25A/25A | 25A/25A |
| No. of MPP trackers | 2 | 2 | 2 | 2 |
| No. of strings per MPP tracker | 2+1 | 2 | 2 | 2 |
| AC Output Data (On-grid) | ||||
| Nominal AC power | 12000W | 10000W | 15000W | 20000W |
| Max. AC power output to utility grid | 13200VA | 11000VA | 16500VA | 22000VA |
| Max. AC current output to utility grid | 19.1A | 16A | 24A | 32A |
| Max. AC current from utility grid | 26.1A | 29A | 44A | 58A |
| Nominal output voltage | 3/N/PE, 220/380Vac, 230/400Vac | |||
| Nominal output frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Output power factor | ~1(0.8 leading to 0.8 lagging) | |||
AC Output Data (Back-up) | ||||
| Nominal output power | 12000W | 10000W | 15000W | 20000W |
| Max. output power | 12000W | 15000VA | 16500VA | 22000VA |
| Max. output current | 27A | 16A | 24A | 32A |
| Nominal output voltage | 3/N/PE, 380/400/415VAC | |||
| Nominal output frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Output THDv (@Liner load) | <3% | <3% | <3% | <3% |
| Others | ||||
| MPPT efficiency | 99.9% | 99.9% | 99.9% | 99.9% |
| Euro efficiency | 97.6% | 97.0% | 97.5% | 97.8% |
| PV reverse polarity protection | YES | YES | YES | YES |
| Output over current protection | Yes | Yes | Yes | Yes |
| Output over voltage protection | Yes | Yes | Yes | Yes |
| Battery reverse protection | Yes | Yes | Yes | Yes |
| Dimension | 422W×658H×281mm | 565*508*244mm | 565*508*244mm | 565*508*244mm |
| Weight | 45kg | 37kg | 37kg | 37kg |
| Protection degree | IP65 | IP65 | IP65 | IP65 |
| Parallel operation | Yes | Yes | Yes | Yes |
Hybrid grid inverter is a key part of the energy storage solar system, which converts the direct current of solar modules into alternating current.
The hybrid network energy storage inverter has its own charger, which can be directly connected to lead-acid batteries and lithium iron phosphate batteries.
Inverter specifications include single-phase 220-240v, 50hz; three-phase 380-415V 50hz; single-phase 120v / 240v 60hz; and three-phase 480v.
