Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Lead Time:
7-15days
Type:
Off Hybrid
Output Voltage :
360-480V
Item No:
3 phase
Lead Time:
10days
Warranty:
3 years

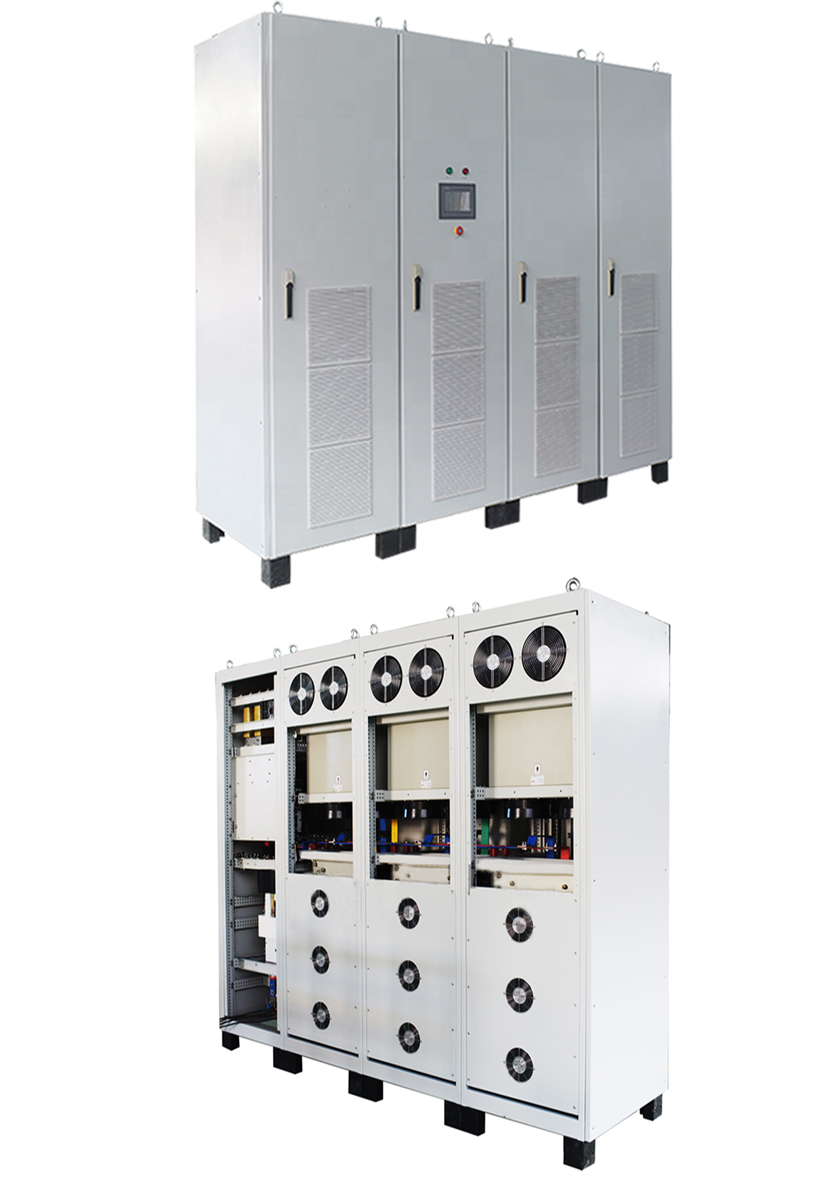

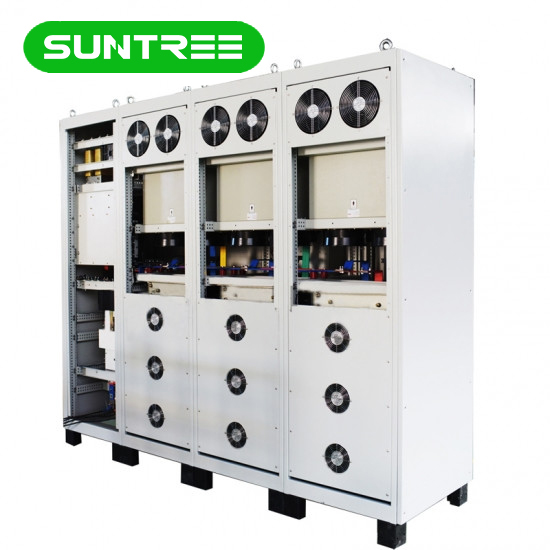

3 Phase 380VAC 480VAC Battery Inverter Off Grid 100KW 200KW 250KW 300KW 400KW 500KW Inverter
Power Frequency Pure Sine Wave Inverter Features:
*Complete isolation-type inverter technology, noiseless output.
*Adoption of advanced SPWM technology, pure sine wave output.
*Dynamic current loop control technology to ensure inverter reliable operation.
*Wide DC input voltage range.
*Excellent EMC design.
*Low output harmonic distortion (THD≤3%).
*LED indicators for input voltage range, load power range, normal output & failure state.
*Optional energy saving mode.
*Extensive protections: reverse polarity, short-circuit, overload, under/over input voltage, over-temperature, and inverter’s inner fault identification protections.
*Wide working temperature range (industrial level).
*Continuous operation at full power.

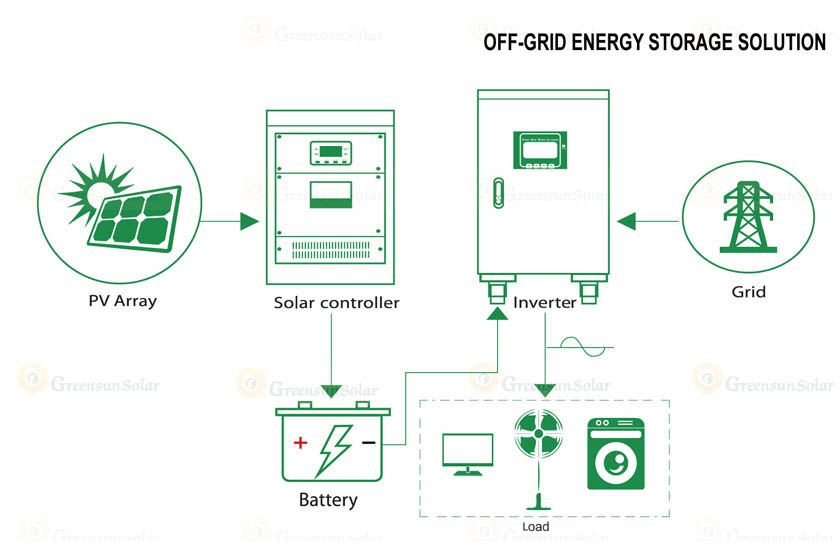

Big OFF GRID Solar Power System Connection:
Technical Specifications of Pure Sine Wave Off Grid Solar Inverter
| Off-Grid Inverter | 200KW | 300KW | 500KW | ||
| Battery Info | |||||
| Battery Voltage | 360/384/492VDC | 360/384/492VDC | 360/384/492VDC | ||
| Battery Type | Lead Acid/Lithium Battery | ||||
| AC bypass | |||||
| Allow input voltage range | 380/400/415/480VAC ± 15% VAC | 380/400/415/480VAC ± 15% VAC | 380/400/415/480VAC ± 15% VAC | ||
| Bypass transfer time | ≤200 ms（4ms optional ） | ≤200 ms（4ms optional ） | ≤200 ms（4ms optional ） | ||
| Inverter Output Info | |||||
| Rated Power | 200KW | 300KW | 500KW | ||
| Input DC voltage allowing range | 320-500VDC | 320-500VDC | 320-500VDC | ||
| Waveform | Pure Sine Wave | ||||
| Surge Power | 120%,10 minutes | 120%,10 minutes | 120%,10 minutes | ||
| AC Voltage | 3Phase, 360-480VAC | ||||
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ | ||
| Efficiency | >85% | >85% | >85% | ||
| THDI | <3% | <3% | <3% | ||
| Protection | |||||
| Battery Undervoltage Protection | YES | ||||
| Grid Overvoltage Protection | YES | ||||
| Over Load Protection | YES | ||||
| Over temperature Protection | YES | ||||
| Short Circuit Protection | YES | ||||
| General Data | |||||
| Temperature Range | -10℃~+60℃ | ||||
| Relative Humidity Range | 0~90%, No condensation | ||||
| Degree of Protection | IP20 | ||||
| Cooling | FAN | ||||
| Display | LCD | ||||
Application
○ For desolate area like mountain, island, pasturing area, etc.
○ For transportation system like beacon light, traffic light, street light, etc.
○ For communication system: unattached operation microwave middle station, optical
cable maintenance station, etc.
○ For photovoltaic power station, wind-solar power station, park charging station, family
power house, factory power station, etc.
○ For solar building: has good business future.
○ For the new technology application project.

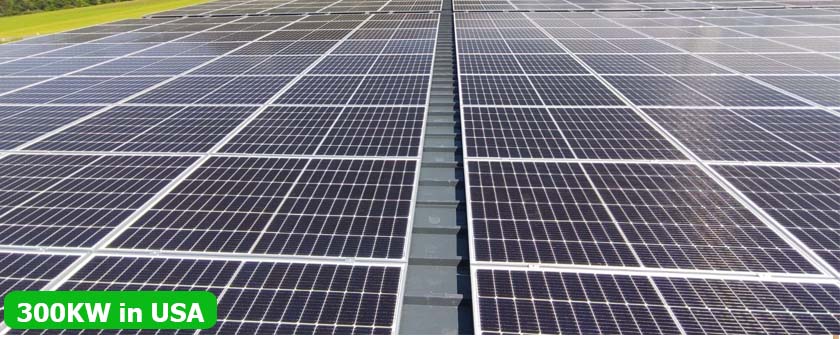

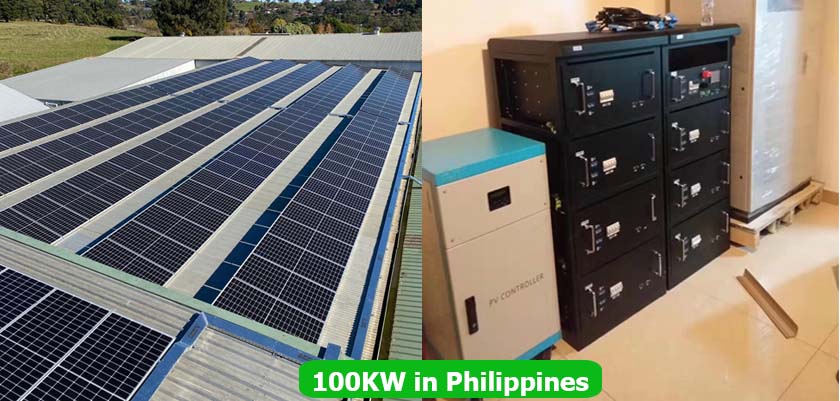

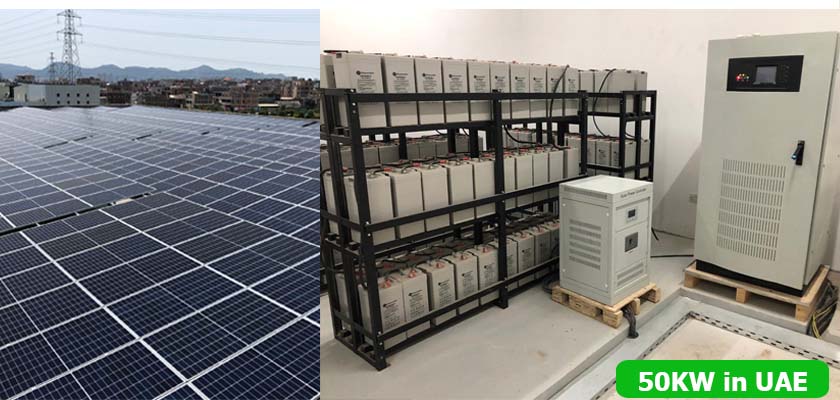

OFF GRID SOLAR SYSTEM Project
AC Voltage can be 110v, 120v, 110/220V,120V/240V, 220V, 240V, 380V,400V,480V.
OEM,ODM service accpetable
