Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Lead Time:
7-15days
Type:
Off Hybrid
Output Voltage :
110V-240V
Item No:
1 Phase, 2 phase
Lead Time:
10days
Warranty:
3 years

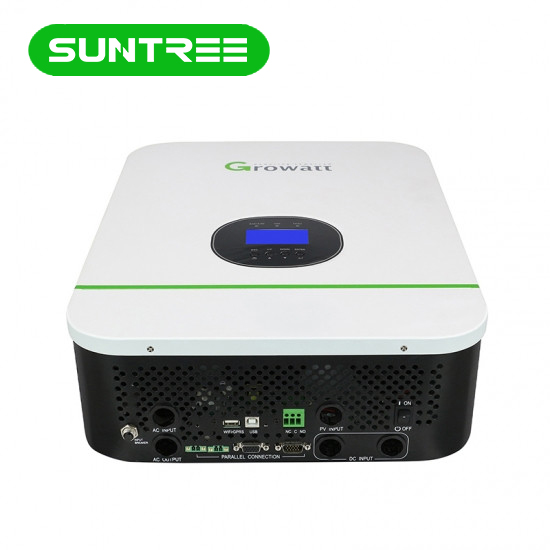

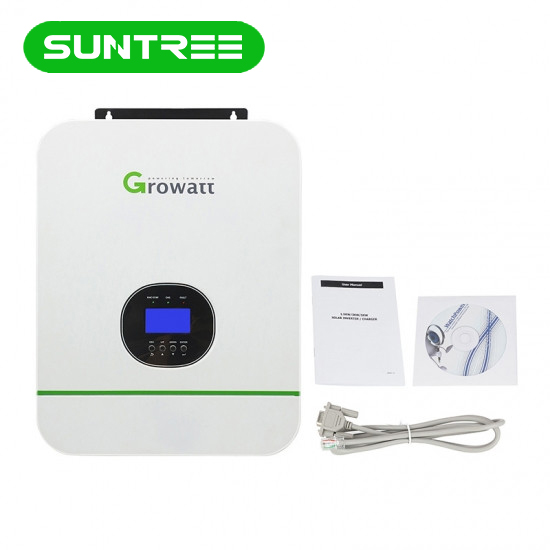

Growatt Hybrid Off Grid Solar PV Inverter SPF 3000TL HVM 5000TL HVM DC 24V 48V Price
Single Phase Split Phase Off Grid Growatt Inverter
Technical Specifications of Solar Inverter/Charger
| Off-Grid Inverter | SPF 3000TL HVM-24 | SPF 3000TL HVM-48 | SPF 3000TL LVM-ES | SPF 3000TL HVM-48P | SPF 5000TL HVM |
| Battery Info | |||||
| Battery Voltage |
24 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC |
| Battery Type | Lead Acid / Lithium Battery | ||||
| Parallel Operation | Not Support | Support | Support | Support | |
| Monitoring | WIFI or GPRS | ||||
| Inverter Output Info | |||||
| Rated Power | 3000VA/ 3000W | 3000VA/ 3000W | 3000VA/ 3000W | 3000VA/ 3000W | 5000VA/ 5000W |
| Surge Powre | 6000VA | 6000VA | 6000VA | 6000VA | 10000VA |
| AC Voltage | 110V, 120V, 120/240V, 220V, 230V, 240V | ||||
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Efficiency | 93% | 93% | 95% | 95% | 95% |
| Waveform | Pure Sine Wave | ||||
| Solar Charger | |||||
| Maximum PV Array Power | 2000W | 4500W | 4000W | 1800W | 4500W |
| Max PV Array Voltage | 145VDC | 145VDC | 250VDC | 150VDC | 150VDC |
| MPPT Volatage | 60-115VDC | 60-115VDC | 120-250VDC | 60-145VDC | 60-145VDC |
| Maximum Solar Charge Current | 50A | 30A | 80A | 80A | 80A |
| Maximum Efficiency | 98% | ||||
| AC Charger | |||||
| Charge Current | 30A | 15A | 40A | 40A | 60A |
| Selectable Voltage Range | 95-140 VAC (For Personal Computers) ; 65-140 VAC (For Home Appliances) | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances | |||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||
| BMS | Built-In | ||||

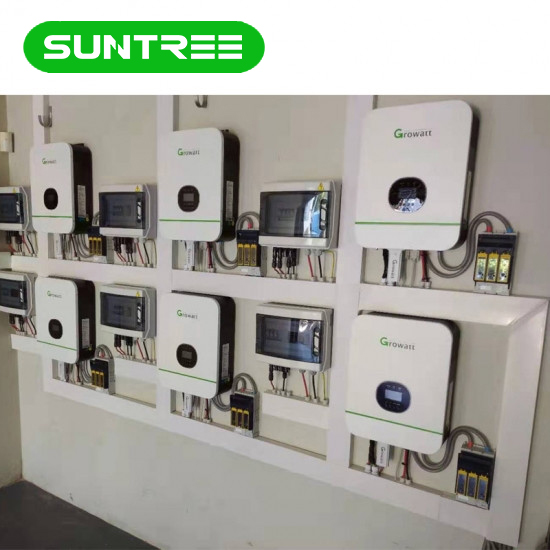

Factory and Project
We SUNTREE Solar produce on grid hybrid inverter, off hybrid inverter with Tesla powerwall home battery and rack mount lithium ion batery pack.
Our Power Wall also can communication with Growatt inverters.
DC voltage can 12v, 24v, 48v,96v, etc., AC Voltage can be 110v, 120v, 110/220V,120V/240V, 220V, 240V, 380V,400V,480V.
OEM,ODM service accpetable
