Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Lead Time:
7-15days
Type:
Off Hybrid
Output Voltage :
110V-240V
Item No:
1 Phase, 2 phase
Lead Time:
10days
Warranty:
3 years

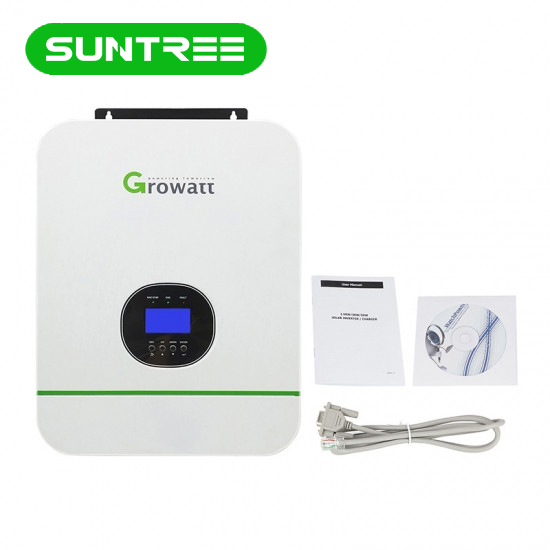

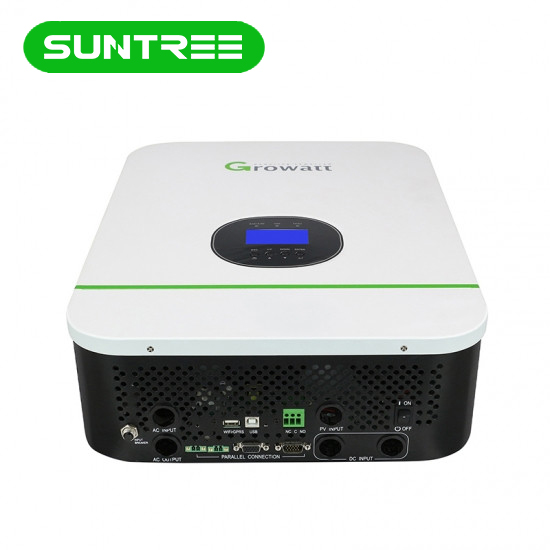

Off Hybrid Growatt Inverter SPF 5000ES 6KW 8KW 10KW 12KW DC AC 48V Solar Storage Inverter

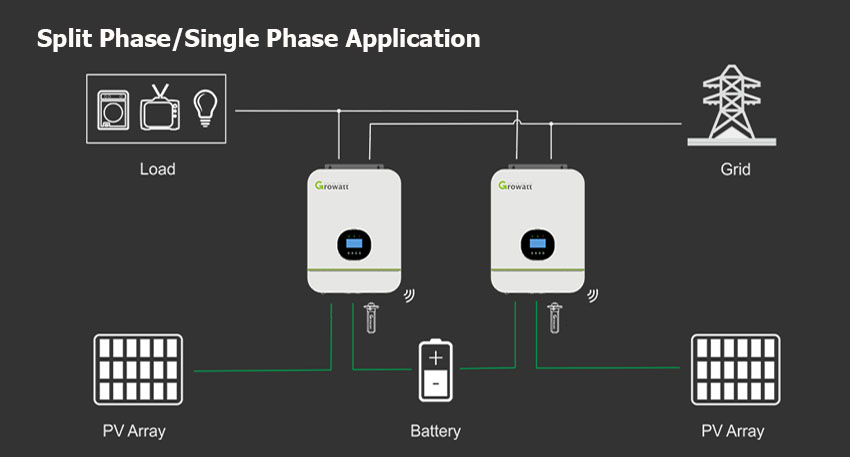

Single Phase Split Phase Off Grid Growatt Inverter
Technical Specifications of Solar Inverter/Charger
| Off-Grid Inverter | SPF 5000ES | SPF 6000KT HVM | SPF 8000KT HVM | SPF 10000TL HVM | SPF 12000KT HVM |
| Battery Info | |||||
| Battery Voltage |
48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC |
| Battery Type | Lead Acid / Lithium Battery | ||||
| Monitoring | WIFI or GPRS | ||||
| Inverter Output Info | |||||
| Rated Power | 5000VA/ 5000W | 6000VA/ 6000W | 8000VA/ 8000W | 10000VA/ 10000W | 12000VA/ 12000W |
| Surge Powre | 10KW | 18KW | 24KW | 30KW | 36KW |
| AC Voltage | 110V, 120V, 120/240V, 220V, 230V, 240V | ||||
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Efficiency | 95% | 95% | 95% | 95% | 95% |
| Waveform | Pure Sine Wave | ||||
| Solar Charger | |||||
| Maximum PV Array Power | 5000W | 6000W | 8000W | 10000W | 12000W |
| Max PV Array Voltage | 145VDC | 150VDC | 150VDC | 150VDC | 150VDC |
| MPPT Volatage | 60-145VDC | 60-145VDC | 60-145VDC | 60-145VDC | 60-145VDC |
| Maximum Solar Charge Current | 80A | 80A | 120A | 120A | 120A |
| Maximum Efficiency | 98% | ||||
| AC Charger | |||||
| Charge Current | 60A | 60A | 70A | 80A | 100A |
| Selectable Voltage Range | 95-140 VAC (For Personal Computers) ; 65-140 VAC (For Home Appliances) | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances | |||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||
| BMS | Built-In | ||||

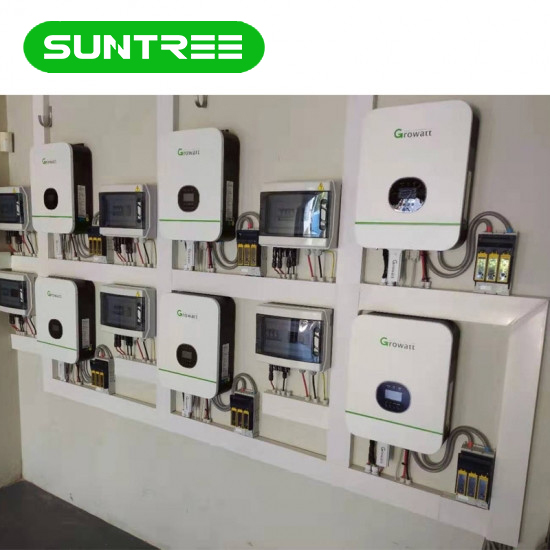

Factory and Project
We SUNTREE Solar produce on grid hybrid inverter, off hybrid inverter with Tesla powerwall home battery and rack mount lithium ion batery pack.
Our Power Wall also can communication with Growatt inverters.
DC voltage can 12v, 24v, 48v,96v, etc., AC Voltage can be 110v, 120v, 110/220V,120V/240V, 220V, 240V, 380V,400V,480V.
OEM,ODM service accpetable
