Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Lead Time:
7-15days
Type:
Off Hybrid
Output Voltage :
110V-240V
Item No:
1 Phase, 2 phase
Lead Time:
10days
Warranty:
3 years

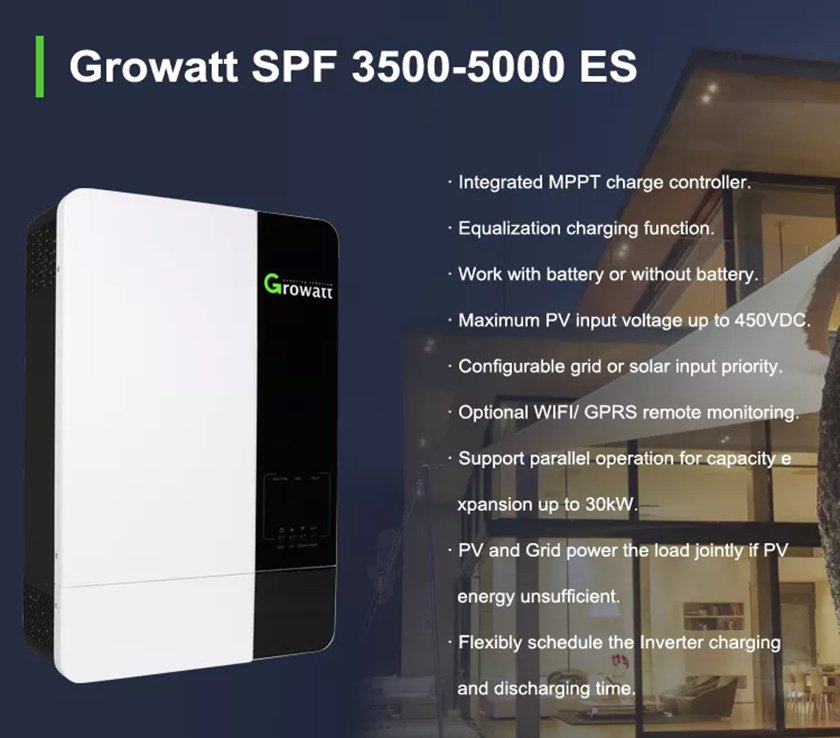

Growatt Off Hybrid SPF 3500ES 5000ES Storage Solar Inverters 3.5kw 5kw 5.5kw for Home Power
Growatt Technical Specifications of Solar Inverter/Charger
| Datasheet | SPF 3500 ES | SPF 5000 ES |
|
Battery Voltage |
48VDC | |
|
Battery Type |
Lithium /Lead Acid | |
|
Parallel Capacity |
Yes, 6 units maximum | |
|
AC Voltage |
230VAC ± 5% @ 50/60Hz | |
| SOLAR CHARGER | ||
|
MPPT Range |
120VDC ~ 430VDC |
120VDC ~ 430VDC |
|
Max PV Array Input Voltage |
450VDC |
450VDC |
|
Max Solar Charge Current |
80A |
100A |
| AC CHARGER | ||
|
Charge Current |
60A |
80A |
|
Frequency |
50Hz/60Hz (Auto sensing) | |
|
Dimension |
330/485/135mm |
330/485/135mm |
|
Net Weight |
11.5kgs |
12kgs |

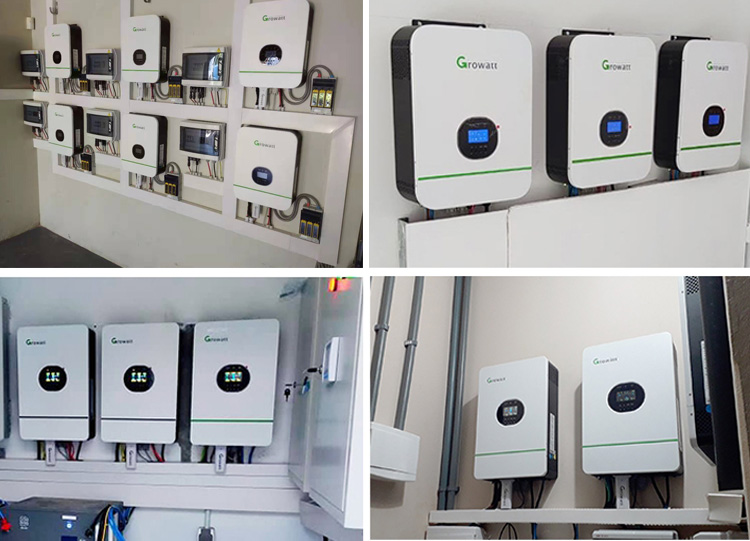

Factory and Project
We SUNTREE Solar produce on grid hybrid inverter, off hybrid inverter with Tesla powerwall home battery and rack mount lithium ion batery pack.
DC voltage can 12v, 24v, 48v,96v, etc., AC Voltage can be 110v, 120v, 110/220V,120V/240V, 220V, 240V, 380V,400V,480V.
OEM,ODM service accpetable
