Brand:
SUNTREE OR OEM SERVICE
Payment:
T/T,L/C,D/A,D/P,Western Union
Product Origin:
China
Shipping Port:
Shanghai ,Ningbo ,Guangzhou
Lead Time:
10-15 working days ,depend on quantity
Type:
AC water pump system
Output Voltage :
220v/380v/415v
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
7-15 working days ,depend on quantity
Payment:
T/T,L/C,D/A,D/P,Western Union
Warranty:
3years
Deep well submersible solar water pump system for agriculture
Specification of solar pump system
Ac pump model | pump power (hp) | water flow (m3/h) | water head (m) | outlet (inch) | voltage (v) |
R95-A-16 | 1.5hp | 3.5 | 120 | 1.25" | 220/380v |
R95-A-50 | 5.5hp | 4.0 | 360 | 1.25" | 220/380v |
R95-VC-12 | 1.5hp | 5.5 | 80 | 1.5" | 220/380v |
R95-BF-32 | 5hp | 7.0 | 230 | 1.5" | 380v |
R95-DF-08 | 2HP | 10 | 50 | 2.0" | 220/380V |
R95-DF-30 | 7.5HP | 10 | 200 | 2.0" | 380V |
R95-MA-22 | 7.5HP | 16 | 120 | 2.0" | 380v |
R95-DG-21 | 10HP | 20 | 112 | 2.0" | 380V |
4SP8-40 | 10HP | 12 | 250 | 2.0" | 380V |
R150-BS-03 | 3HP | 18 | 45 | 2.5" | 380V |
R150-DS-16 | 18.5HP | 25 | 230 | 2.5" | 380V |
R150-ES-08 | 15HP | 38 | 110 | 3.0" | 380V |
6SP46-7 | 15HP | 66 | 78 | 3.0" | 380V |
6SP46-18 | 40HP | 66 | 200 | 3.0" | 380V |
8SP77-5 | 25HP | 120 | 100 | 4.0" | 380 |
8SP77-10 | 50HP | 68 | 198 | 4.0" | 380V |

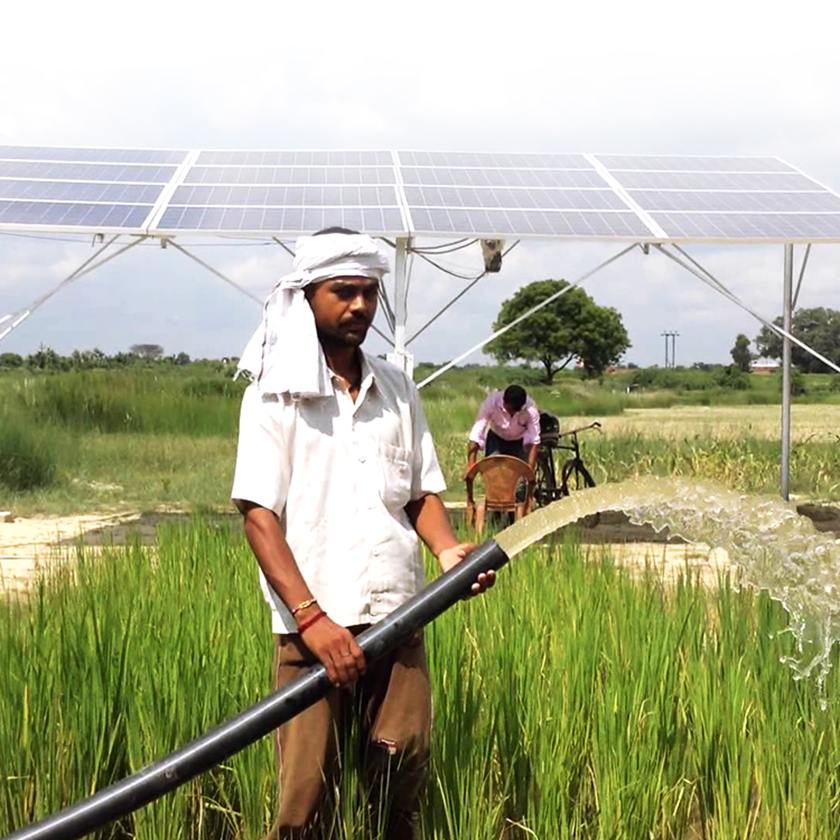

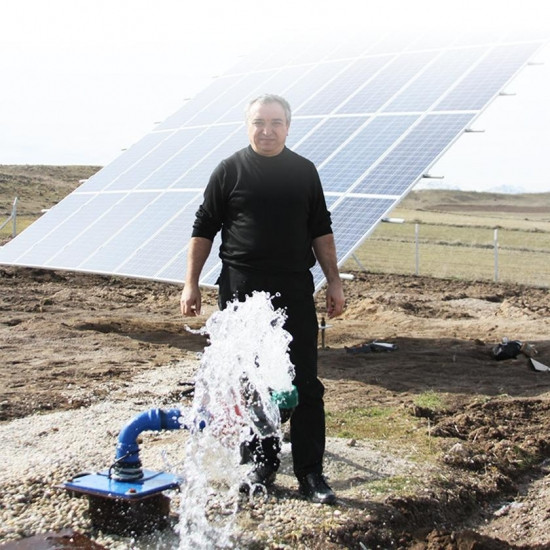

Project pictures of solar water pump system
5.5hp AC solar water pumping system in the Middle East .
Water head : 35meter
Water flow : 15M3 water per hour
25hp AC solar water pumping system in Canada.
Water head : 18meter
Water flow : 55M3 water per hour
AC Solar water pumping system including ac water pump ,solar module ,MPPT pump controller ,solar mounting brackets ,dc combiner box and related accessories .
Daytime , solar panel array provide power for the whole solar water pump sytem operating ,the mppt pump controller converts the direct current output of the photovoltaic array into alternating current and drives the water pump, adjust the output voltage and frequency in real time according to the change of sunshine intensity to achieve maximum power point tracking .
Advantages of AC solar water pumping system :
1. High water head and large water flow for agriculture 、industrial ，and domestic water use .
2. The pump inverter also can connect local city grid and get power to operating pump at night .
3. Stainless steel material , permanent magnet motor ,100% copper wire ,long life time .
AC solar water pumpiing system application :
(1) Economic crops and farmland irrigation.
(2) Livestock water and grassland irrigation.
(3) Household water .
