Item NO.:
Q.PEAK DUO XL-G10.3
Product Origin:
China
Color:
Full Black/Silver
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
156cells
Solar Cell:
q cells
Power Ranger:
470w-485w
Size:
2216*1045*35mm
Type:
Monocrystalline
Max Power :
485W
Certification:
IEC/CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years
Q CELLS Photovoltaic Solar Panel 470W 480W 485W Bifacial 156 Cell Hanwha Q.Peak Duo XL G10 PV Module

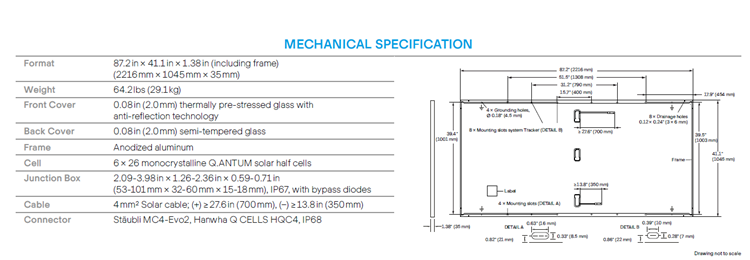

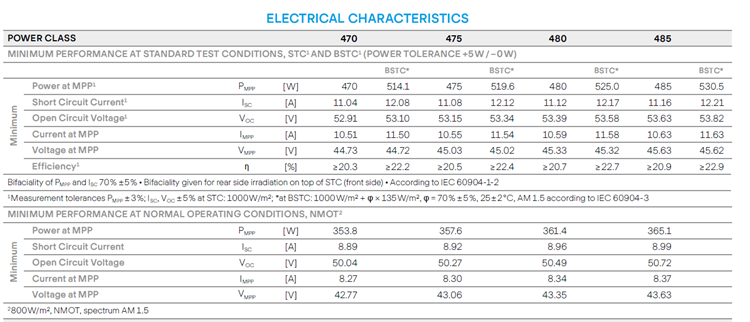

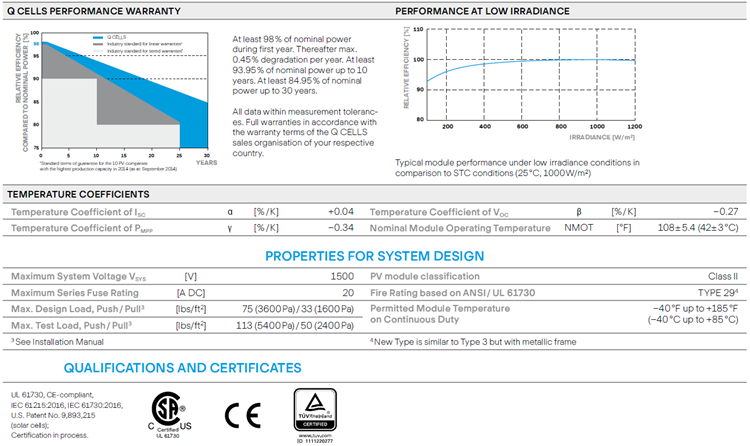

Specification of 12BB Q Cells Bifacial Solar Panels
Production of Q CELLS Solar Panel
620Units per 40`ft container
Solar Panel Projects
100% Q CELLS PHOTOVOLTAIC SOLAR PANEL.
Q CELLS Stock Solar Module:
360W, 370W, 380W, 390W, 410W, 420W, 430W, 460W, 470W, 480W.
Features:
Maximum Efficiency: 156 back contact mono-PERC c-Si half cells
All positive module sorting (-0/+10W) means you receive more power from your PV system.
Superior manufacturing processes.
Strict quality controls during each step at one of the world’s most automated module production facilities.
Lightweight frame exclusively designed with wide-ranging racking compatibility and durability.
Specifications:
87″ H x 41″ W x 1.37″ D
57lbs
Black aluminum frame with back composite film
MC4 connectors
156 Monocrystalline Q.ANTUM Solar Half Cells
Peak efficiency: 21%
Nominal power: 480W
Tolerance: +0-10W
Open circuit voltage: 53.64V
Short circuit current: 11.29A
Maximum system voltage: 1500V
Manufacturer: Hanwha
