Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Color:
Full Black/Silver
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
100cells
Solar Cell:
Mono 210mm
Power Ranger:
520-560w
Size:
2185mm×1098mm×35mm
Type:
Monocrystalline
Max Power :
560W
Certification:
INMETRO/IEC/CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

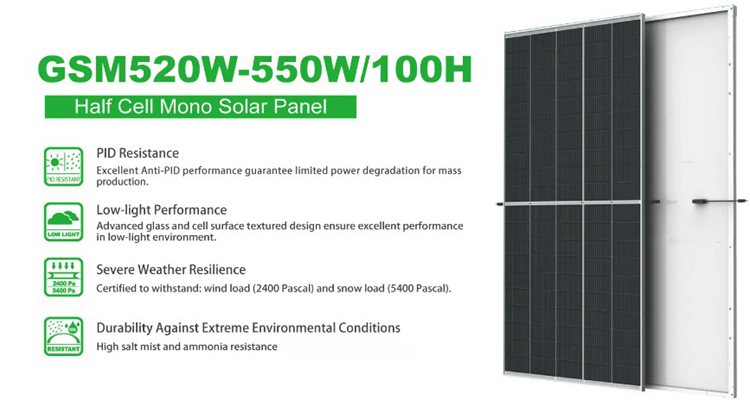

M12 HJT Solar Module Monocrystlline 500W 520W 550W Solar Panels 550Watt Half Cut Half Cells for Sale
Specification of 210mm Half Cut Solar Panel Monocrystalline
| Model | GSM520 | GSM530 | GSM540 | GSM550 | GSM560 |
| Maximum Power[Pmax] | 520W | 530W | 540W | 550W | 560W |
| Maximum Power Voltage(Vmp) [V] | 29.6 | 30.0 | 30.4 | 30.8 | 31.2 |
| Open Circuit Voltage [Voc] | 35.3 | 35.8 | 36.3 | 36.8 | 37.2 |
| Short Circuit Current(Isc) [A] | 18.87 | 19.03 | 19.19 | 19.35 | 19.51 |
| Maximum Power Current(Imp) [A] | 17.6 | 17.72 | 17.84 | 17.96 | 18.08 |
| Module Efficiency [%] | 21.7 | 22.1 | 22.5 | 21.9 | 23.3 |
| Power Tolerance | 0~+5W | ||||
| Temperature Coefficient of Isc(α_Isc) | +0.040%/℃ | ||||
| Temperature Coefficient of Voc(β_Voc) | -0.250%/℃ | ||||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.340%/℃ | ||||
| STC | Irradiance 800W/m²,Ambient Temperatire 20℃ | ||||
| Size | 2185*1098*35mm | ||||
| Weight | 25.6kg | ||||
Production of 520W-560W Half Cut Half Cells Solar Panel (210mm)
Package for Half-cut Solar Panel
27 units to 30units half-cut cells solar panel in one wood pallet
10 pallets solar panels in a 20ft container
23 pallets pv modules in a 40ft HQ container
Customization Package is Feasibility
Half-cut Cells Advantages
(1) The solar cell is divided into two, the main gate current is halved, the current loss of the whole component is reduced to 1/4 of the original, and the output power is about 5-10W higher than that of the same type of whole battery assembly.
(2) The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module
assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.
(3) Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;
(4) Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.
(5) Reduce the first year and the average photoinduced attenuation;
(6) 100% PID Free.
INMETRO Solar Panel 550Watt for Brazil Market
