Product Origin:
China
Color:
Full Black/Silver
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
144cells
Solar Cell:
Mono 182x182mm
Power Ranger:
585w
Size:
2278*1134*35mm
Type:
Monocrystalline
Max Power :
585W
Certification:
IEC/CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

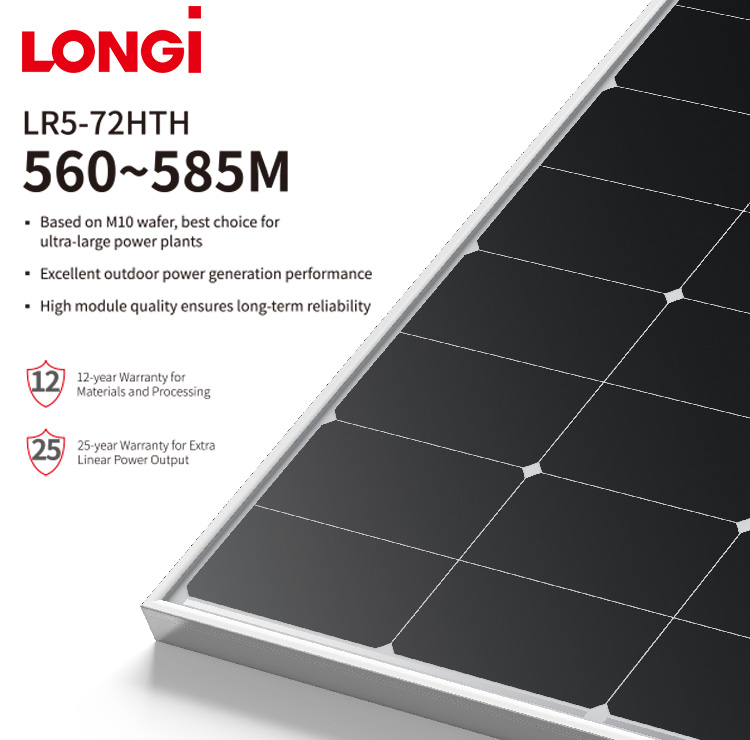

Longi Hi-MO6 LR5-72HTH 560W 565W 580W 585W Mono Solar Panel Price

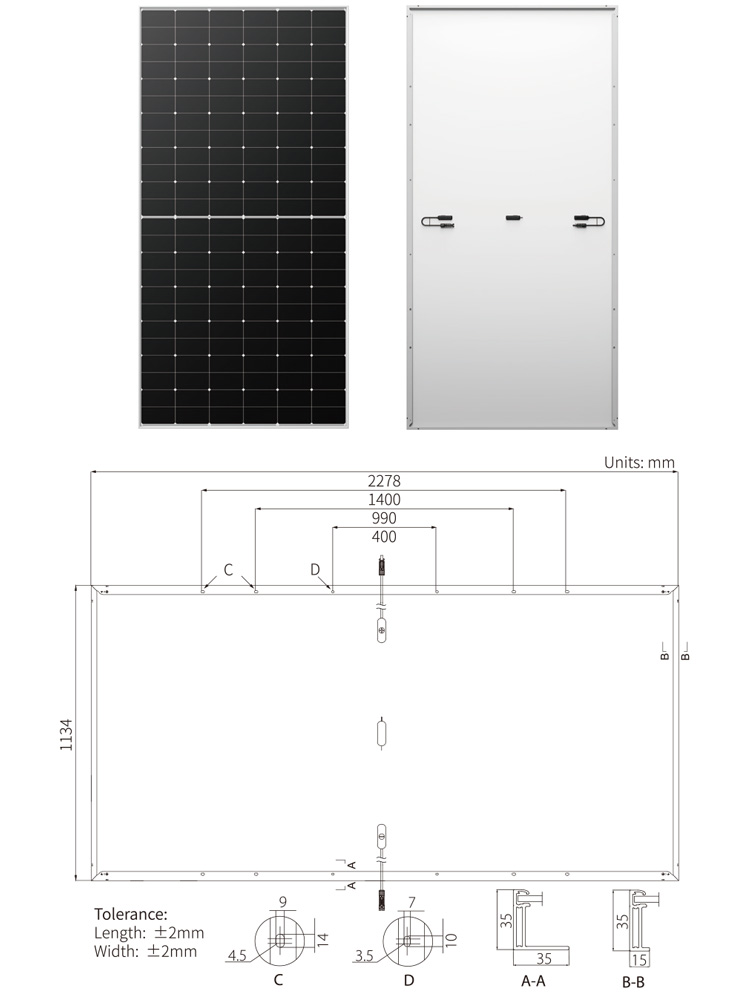

Specification of Bifacial Longi Solar Panel
| Solar Panel Model | LR5-72HTH-560M | LR5-72HTH-570M | LR4-72HTH-580M | LR4-72HTH-585M |
| Rated Maximum Power(Pmax)[W] | 560 W | 570 W | 580 W | 585 W |
| Open Circuit Voltage(Voc) [V] | 51.61 | 51.91 | 52.21 | 52.36 |
| Maximum Power Voltage(Vmp) [V] | 43.46 | 43.76 | 44.06 | 44.21 |
| Short Circuit Current(Isc) [A] | 13.94 | 14.07 | 14.20 | 14.27 |
| Maximum Power Current(Imp) [A] | 12.89 | 13.03 | 13.17 | 13.24 |
| Module Efficiency [%] | 21.7 | 22.1 | 22.5 | 22.6 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.048%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.270%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/℃ | |||
| Size | 2278*1134*35mm | |||
| Weight | 27.5kg | |||
Production of Half-cut 144cells Longi solar panel
Package for Longi Half-cut Solar Panel
31pcs solar panel per pallet
155pcs per 20ft container
620pcs per 40ft container

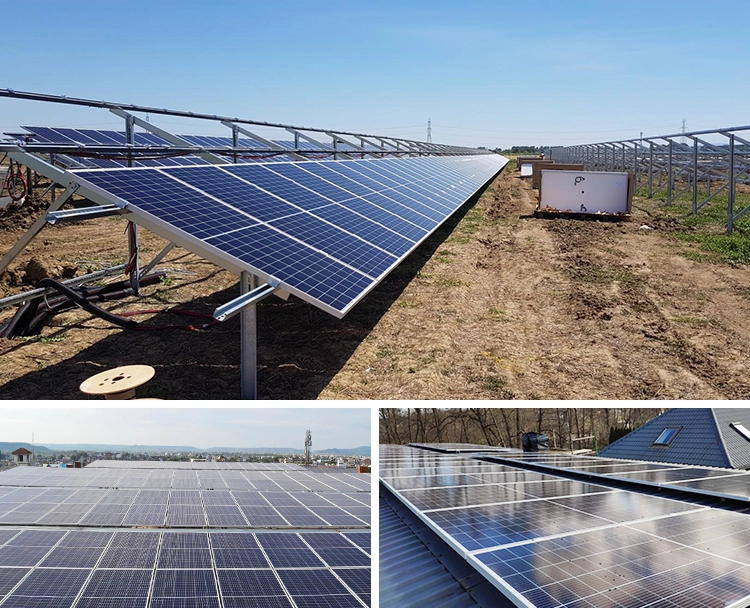

Longi Solar Panel Projects
1. Limited Product Warranty-Repair or Replacement within 12 years Supplier assures that under the conditions for regular application, installation, use and service, the integral module (including attached DC connectors, cables) can meet the demand of regular application, use and installation and have no defect caused by material and process within 144 months as of the Warranty Effective Date.
2. Limited Warranty for Peak Power - Limited Compensation Supplier provides power output loss assurance within 25 years as of the Warranty Effective Date.
