Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Color:
Full Black
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
108cells
Solar Cell:
bifacial TOPCON Mono 182x182mm
Power Ranger:
400w-420w
Size:
1726mm×1134mm×35mm
Type:
Monocrystalline
Max Power :
435W
Certification:
IEC/CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years
Topcon 420W 42W 430W 435W Bifacial Monocrystalline Solar Panels Half Cut Cells PV Module
Specification of TOPCON Bifacial Half Cut Solar Panel Monocrystalline
| PV Module | 420W | 425W | 430W | 435W |
| Rated Maximum Power(Pmax) [W] | 420 | 425 | 430 | 435 |
| Open Circuit Voltage(Voc) [V] | 38.11 | 38.30 | 38.49 | 38.68 |
| Maximum Power Voltage(Vmp) [V] | 31.51 | 31.70 | 31.88 | 32.07 |
| Short Circuit Current(Isc) [A] | 14.07 | 14.15 | 14.23 | 14.31 |
| Maximum Power Current(Imp) [A] | 13.33 | 13.41 | 13.49 | 13.57 |
| Module Efficiency [%] | 21.51 | 21.76 | 22.02 | 22.27 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.048%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.270%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/℃ | |||
| STC | Irradiance 800W/m², Ambient temperature 20℃ | |||

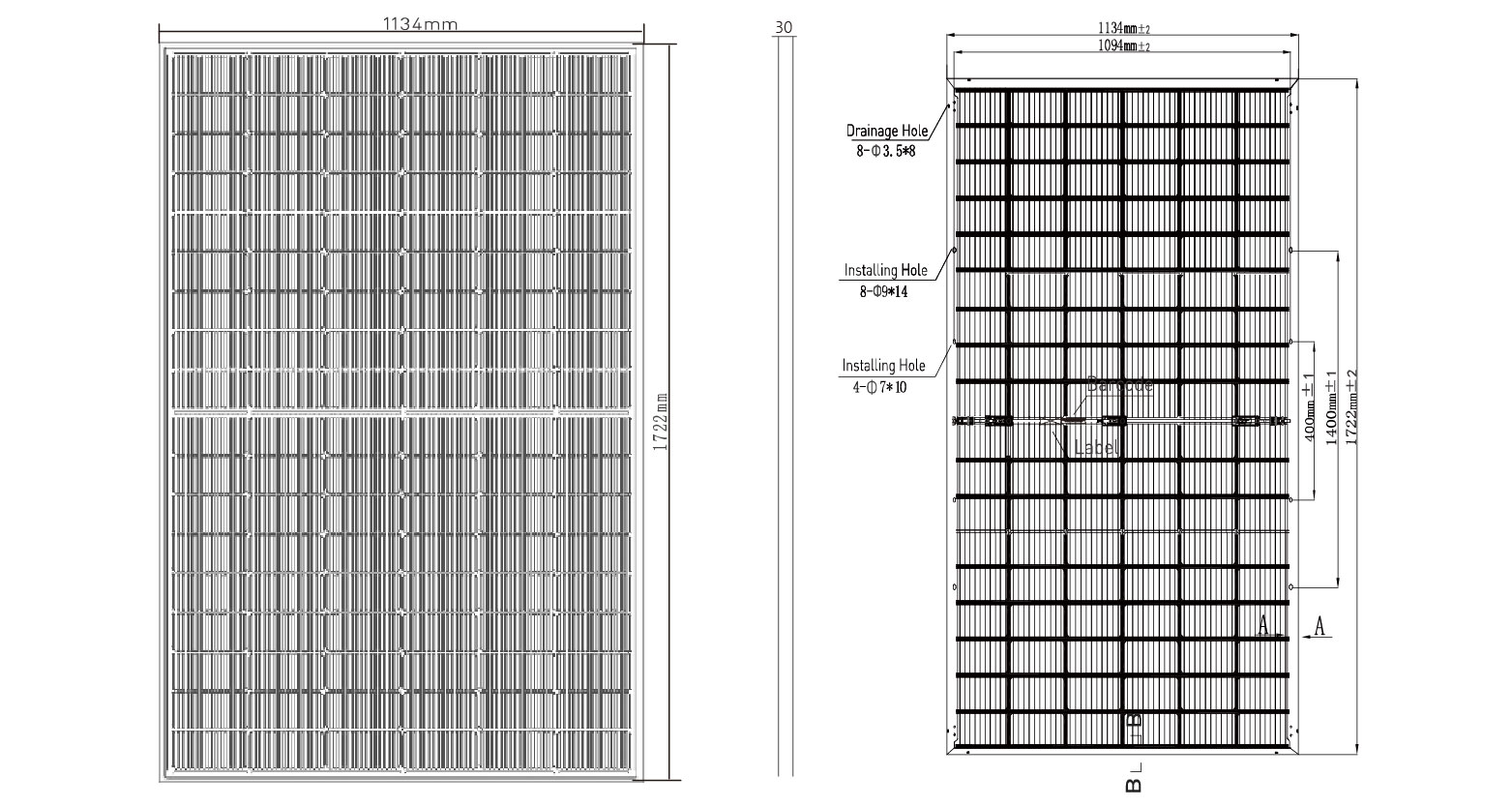

| Size | 1726*1134*35mm | |||
| Weight | 22kg | |||
Production of TOPCON Bifacial Half Cut Half Cells Solar Panel (182*182mm)
Package for TOPCON Half-cut Solar Panel
27 units to 30 units half-cut cells solar panel in one wood pallet
10 pallets solar panels in a 20ft container
26 pallets pv modules in a 40ft HQ container
Customization Package is Feasibility
Half-cut Cells Advantages
(1) The solar cell is divided into two, the main gate current is halved, the current loss of the whole component is reduced to 1/4 of the original, and the output power is about 5-10W higher than that of the same type of whole battery assembly.
(2) The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module
assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.
(3) Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;
(4) Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.
(5) Reduce the first year and the average photoinduced attenuation;
(6) 100% PID Free.
