Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Solar Cell:
half cut cells
Power Ranger:
5W-400W
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

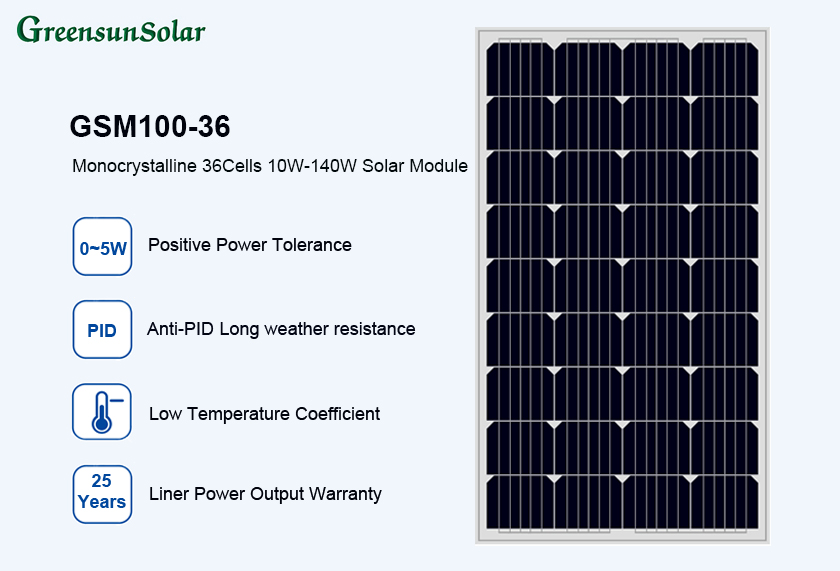

Mono 36cells 12v solar panel
Specification for 12V solar panel
| PV Module | GSM50W | GSM100W | GSM150W | GSM200W |
| Rated Maximum Power(Pmax) [W] | 50 | 100 | 150 | 200 |
| Open Circuit Voltage(Voc) [V] | 23.37 | 22.23 | 23.75 | 24.37 |
| Maximum Power Voltage(Vmp) [V] | 18.62 | 19.05 | 20.43 | 21.79 |
| Short Circuit Current(Isc) [A] | 2.27 | 4.45 | 6.73 | 8.72 |
| Maximum Power Current(Imp) [A] | 2.68 | 5.25 | 7.34 | 9.17 |
| Module Efficiency [%] | 16.12 | 17.24 | 19.7 | 20.8 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | |||
| STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | |||
|
Size |
800*5800*30mm | |||
|
Weight |
4KG - 10KG | |||

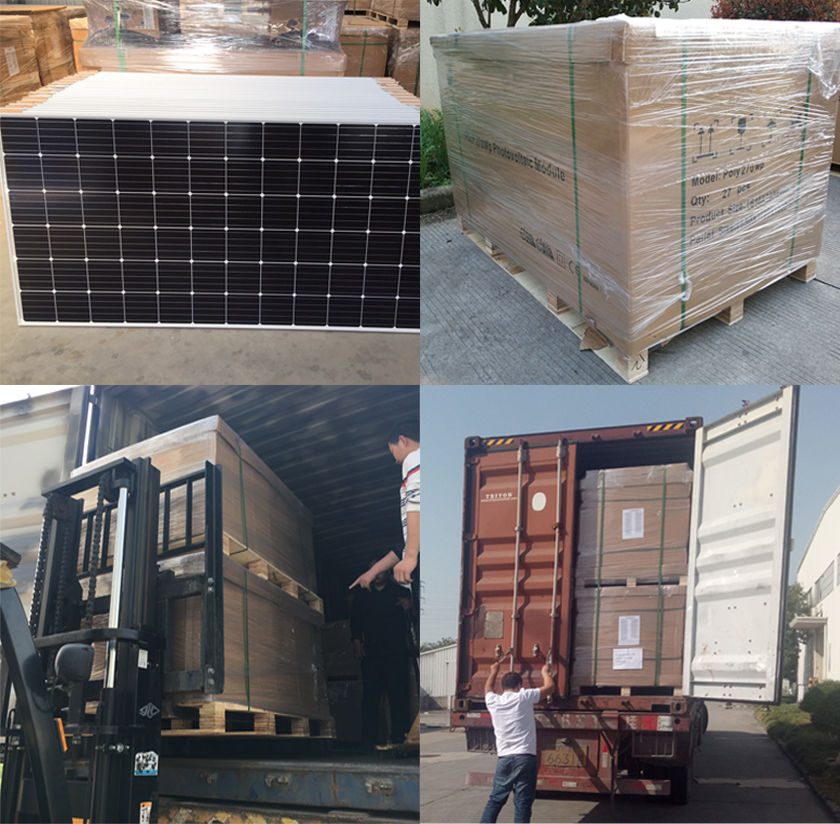

Package for small solar panel

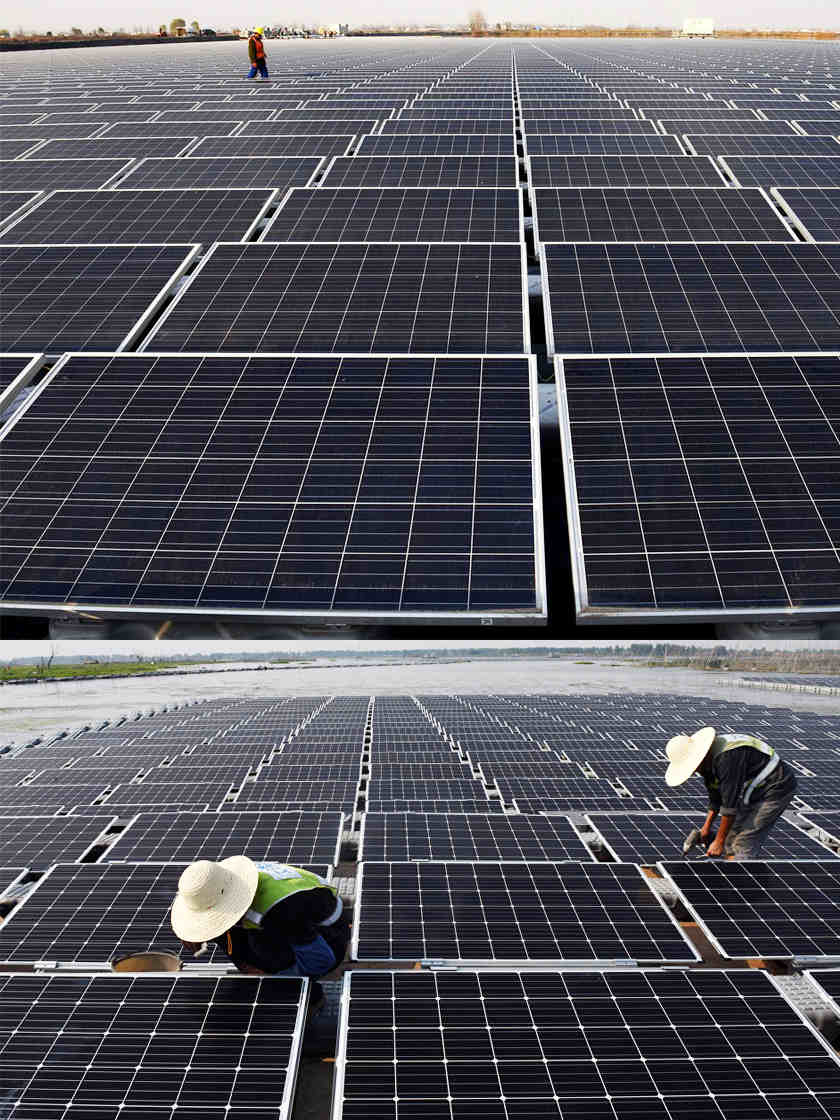

Projects made by SUNTREE solar
All Monocrystalline solar panels
Half Cut cells, A+ quality
25 Years warranty
