Brand:
SUNTREE OR OEM SERVICE
Product Origin:
China
Color:
Full Black/Silver
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
132cells
Solar Cell:
210mm solar cells
Power Ranger:
700W-730w
Size:
2384mm×1308mm×35mm
Type:
N-type HJT Bifacial
Max Power :
730W
Certification:
IEC/CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
30 years
Bifacial Mono HJT 700W 705W 710W 715W 720W 730W N Type Home Solar Panels for Sale
Specification of HJT Half Cut Solar Panel Monocrystalline
N-Type HJT Bifacial Dual Glass Mono Solar Panels Datasheet
| Model | HJT 700W | HJT 710W | HJT 720W | HJT 730W |
| Maximum Power[Pmax] | 700W | 710W | 720W | 730W |
| Maximum Power Voltage(Vmp) [V] | 41.78 | 41.92 | 42.06 | 42.22 |
| Open Circuit Voltage [Voc] | 49.83 | 50.01 | 50.19 | 50.37 |
| Short Circuit Current(Isc) [A] | 17.82 | 17.98 | 18.14 | 18.30 |
| Maximum Power Current(Imp) [A] | 16.77 | 16.93 | 17.11 | 17.29 |
| Module Efficiency [%] | 22.80% | 22.80% | 23.10% | 23.50% |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.048%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.280%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/℃ | |||
| Package | 31 units per pallets, 558units per container | |||

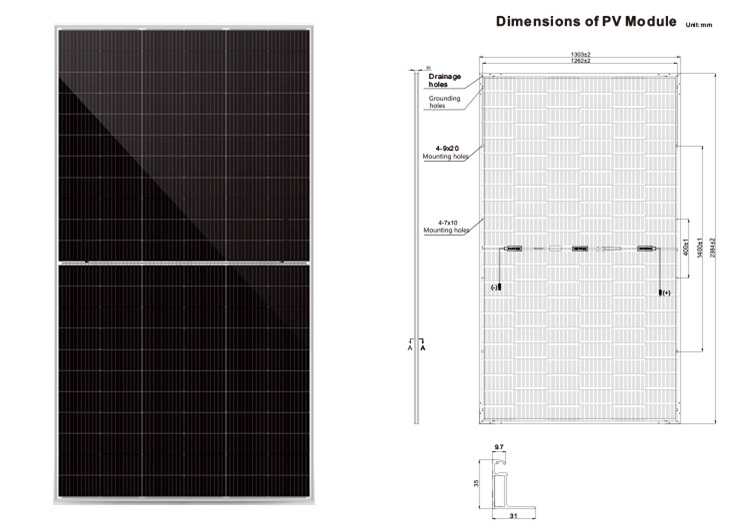

| Size | 2384*1303*35mm | |||
| Weight | 38.5kg | |||
More Info of HJT Solar Panels
HJT technology belongs to N-TYPE solar cells.
Compared with ordinary PERC solar panels, it has the characteristics of longer life, higher efficiency and more advanced technology.
Will become the mainstream product in the market.
Our own HJT bifacial dual galss solar panels haave a power range from 700W to 730W, and will further expand the power range of the product.
Product types include single-glass, bifacial double-glass and all-black versions.
At the same time, our business partners include LONGI, RISEN, TRINA, JINKO. . . etc.
OEM service is acceptable.
HJT Technology Solar Panel Advantages
1. High efficiency: The conversion efficiency of N-Type cells is relatively high, up to 23%.
2. Low temperature coefficient: The temperature coefficient of N-type cells is low, suitable for use in high temperature environments, and the efficiency decay is small.
3. Strong durability: Topcon cells use high-quality materials and manufacturing processes, with a service life of more than 30 years and low maintenance costs.
4. Good spectral response: B-Type cells have good spectral response to different bands and are suitable for various application scenarios.
5. Good transparency: The surface of B-type cells can achieve high transparency, which is suitable for use in products that require transparency.
6. Low cost: Compared with other types of solar panels, the production cost of HJT photovoltaic is low.
